• High Capacity External Spring Loaded Ball Transfer Unit with 12.7mm Steel Ball - Load Capacity 14kg - Allow 2-3 Days
1 1

SKU: 570-502

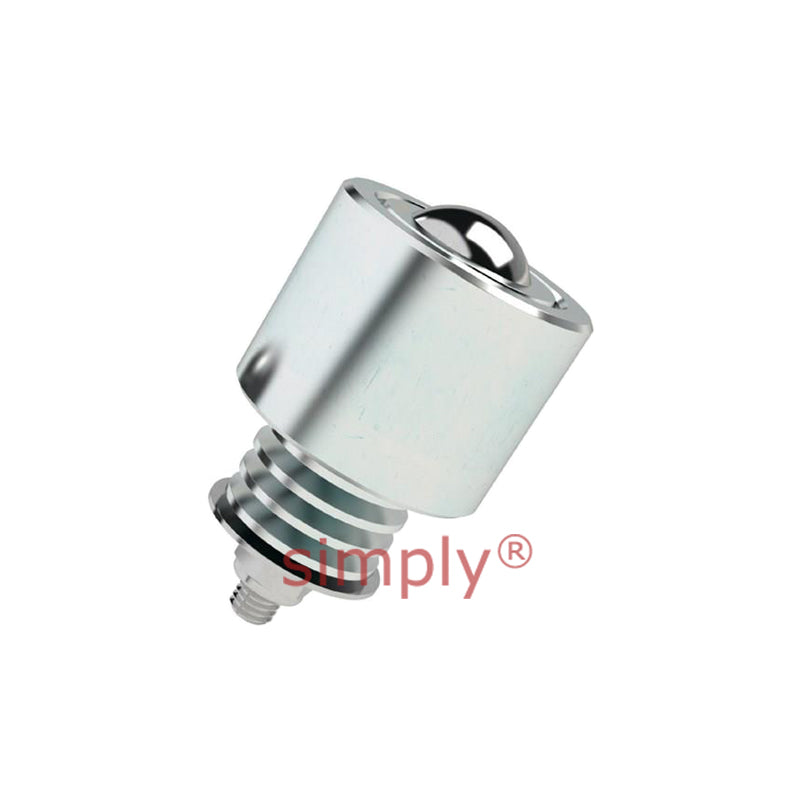

High Capacity External Spring Loaded Ball Transfer Unit with 12.7mm Steel Ball - Load Capacity 14kg - Allow 2-3 Days

High Capacity External Spring Loaded Ball Transfer Unit with 12.7mm Steel Ball - Load Capacity 14kg - Allow 2-3 Days
CHF 48.00 ex VAT
CHF 48.00 ex VAT
Sale Sold out

In stock

Price Break
4+ CHF 37.01
9+ CHF 34.93
14+ CHF 34.51
19+ CHF 34.10
49+ CHF 33.68
74+ CHF 33.26
99+ CHF 31.19
199+ CHF 30.77
249+ CHF 30.35
499+ CHF 29.94
999+ CHF 29.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
MVV64HPJSS
Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
12.7mm
Technical
--- Dimensions
Ball Diameter 12.7mm
D 20.6mm
R 20mm
X 31.8mm
Y 47mm
Z 15mm
Max Deflection 2mm
--- Loads and Speeds
Supports Load 14kg
Load to Max Deflection 35kg
Weight 0.06 kg
--- Materials
Material Body: Zinc Plated Mild Steel<br>Ball: Steel 9Cr18Mo
