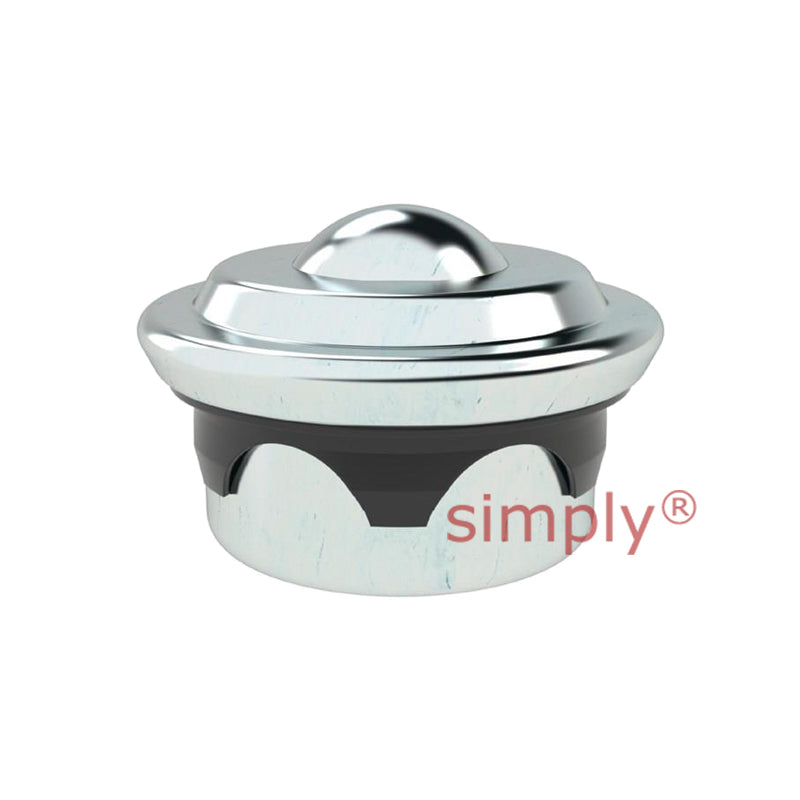

• High-Performance Light Duty Ball Transfer Unit with 15.88mm Steel Ball - Load Capacity 17kg - Allow 2-3 Days
1 1

SKU: 569-215

High-Performance Light Duty Ball Transfer Unit with 15.88mm Steel Ball - Load Capacity 17kg - Allow 2-3 Days

High-Performance Light Duty Ball Transfer Unit with 15.88mm Steel Ball - Load Capacity 17kg - Allow 2-3 Days
CHF 7.00 ex VAT
CHF 7.00 ex VAT
Sale Sold out

In stock

Price Break
4+ CHF 4.92
9+ CHF 4.65
14+ CHF 4.59
19+ CHF 4.54
49+ CHF 4.48
74+ CHF 4.43
99+ CHF 4.15
199+ CHF 4.09
249+ CHF 4.04
499+ CHF 3.98
999+ CHF 3.87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
V44AJBMM9L

This ball transfer unit is supplied with a fixing clip. Fixing clips compensates variations in bore and diameter, making them particularly suitable for situations where access to only one side of the mounting surface is possible.

Brand / Quality:
Simply Ball Transfer Units
Outside Diameter:
15.88mm
Technical
--- Dimensions
D 15.88mm
D1 32mm
D2 24mm
D3 (With Clip) 25/25.5mm
H 21mm
H1 9mm
H2 3mm
--- Loads and Speeds
Load Capacity 17 kg
Weight 0.05 kg
--- Materials
Material Body: Zinc Plated Carbon Steel<br>Ball: Steel 9Cr18Mo
