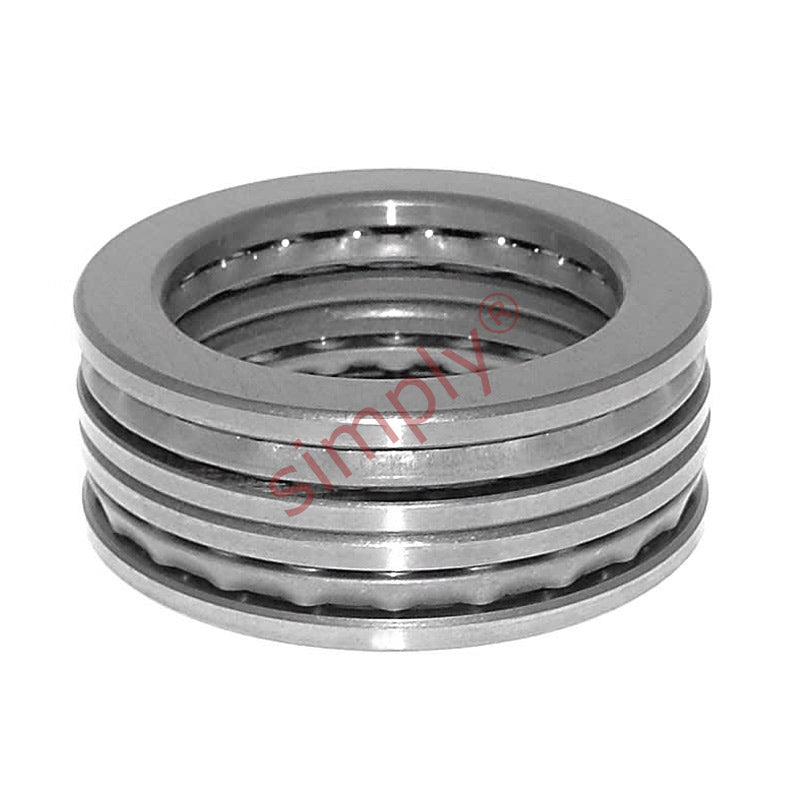

SKF 54316 Double Thrust Ball Bearing with Spherical Housing Washers 65x140x95mm

Name: SKF 54316 Double Thrust Ball Bearing with Spherical Housing Washers 65x140x95mm
Brand: SKF
SKU: 54316-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

Brand / Quality:: SKF - High Quality
Inside Diameter:: 65mm
Outside Diameter:: 140mm
Width:: 95mm

Technical

d	65mm
D	140mm
H1	95mm
Dynamic load C	159 kN
Static load Co	390 kN
Fatigue load limit Pu	13.7 kN
Minimum load factor A	0.79
Reference speed	1700 rpm
Limiting speed	2400 rpm
Weight	0.57 kg
Seating washer	U316
D1	82mm
D2	110mm
D3	145mm
H	86.1mm
B	18mm
C	18mm
R	112mm
s	45.5mm
r1r2	1.5mm
r3r4	1mm
da	80mm
Da max	110mm
ra max	1.5mm
rb max	1mm
