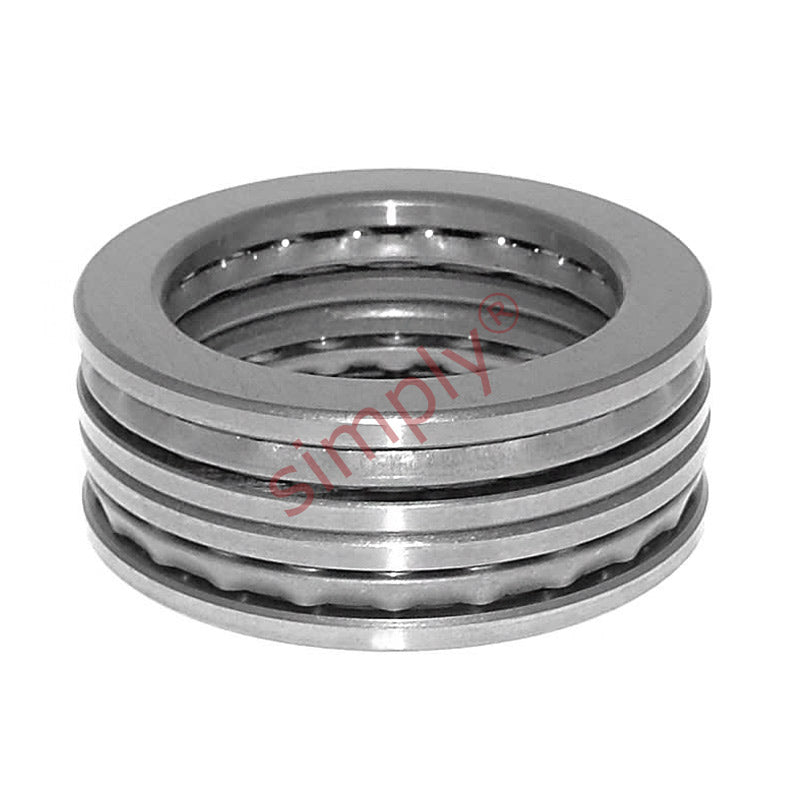

SKF 54209 Double Thrust Ball Bearing with Spherical Housing Washers 35x73x45mm

Name: SKF 54209 Double Thrust Ball Bearing with Spherical Housing Washers 35x73x45mm
Brand: SKF
SKU: 54209-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

Brand / Quality:: SKF - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 73mm
Width:: 45mm

Technical

d	35mm
D	73mm
H1	45mm
Dynamic load C	39 kN
Static load Co	86.5 kN
Fatigue load limit Pu	3.2 kN
Minimum load factor A	0.038
Reference speed	3600 rpm
Limiting speed	5000 rpm
Weight	0.78 kg
Seating washer	U209
D1	47mm
D2	60mm
D3	78mm
H	39.6mm
B	9mm
C	7.5mm
R	56mm
s	23mm
r1r2	1mm
r3r4	0.6mm
da	45mm
Da max	60mm
ra max	1mm
rb max	0.6mm
