SKU: 50-A-30-06-ROLL-REN

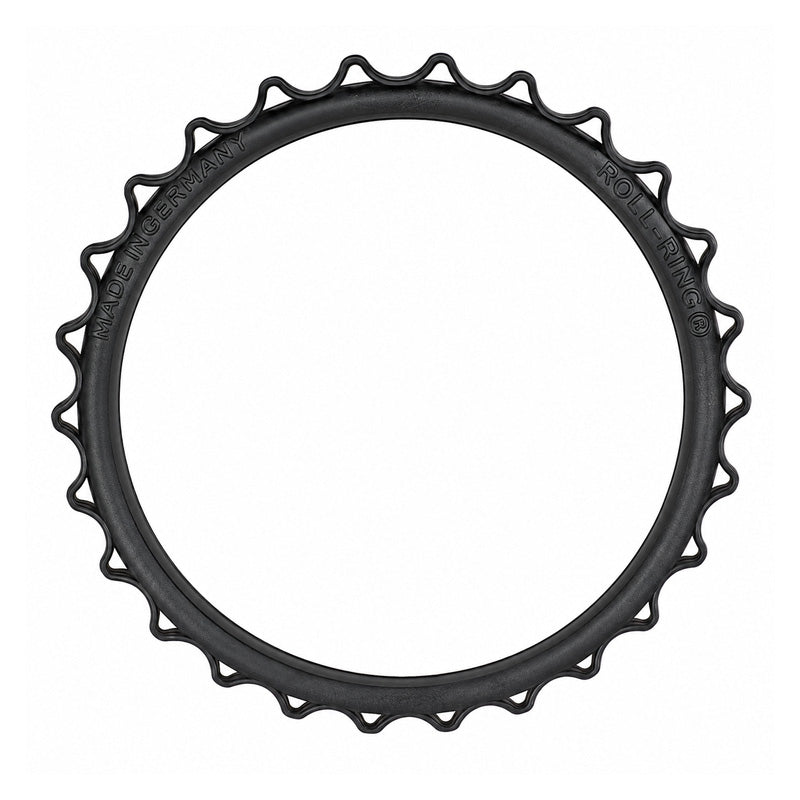

Renold 30 Tooth 50-A Roll Ring for 5/8 inch Pitch - Ambient Temperature +18 to+176°F
Renold 30 Tooth 50-A Roll Ring for 5/8 inch Pitch - Ambient Temperature +18 to+176°F
Out of stock
Description
Description
|
Renold Roll Ring: The ROLL-RING® is designed to deform to an elliptical shape, when the drive is in use. This is due to ROLL-RING® being compressed completely absorbs any slack in the system. ROLL-RING® chain tensioners are maintenance free and can be fitted to a wide variety of chain drives with no installation downtime. The ROLL-RING® has been modified to the requirements of higher operating temperatures. |
- Brand / Quality:
- Renold - High Quality
- Teeth:
- 30
- Pitch:
- 5/8 inches
Technical
Technical
| do | 5.827 inch |
|---|---|
| di | 4.906 inch |
| s | 1.299 inch |
| A | 6.969 inch |
| D = do-s | 4.528 inch |
| Chain Dimension - p x b1- inches | 5/8x3/8 |
| Max Static Expansive Force - lbs** | 7.69 |
| Maximum Chain Speed ft/min | 1102 |
| Ambient Temperature (°F) | +18 to+176 |
| Weight (lbs) | 0.066 |
