SKU: 50-3-NO26-MB
Branded 50-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Branded 50-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
CHF 6.00
ex VAT
Regular price
Sale price
CHF 6.00
ex VAT
Equivalent to: 50-3-CL
In stock
Price Break
2+
CHF 4.22
5+
CHF 3.98
10+
CHF 3.93
29+
CHF 3.89
49+
CHF 3.84
75+
CHF 3.79
100+
CHF 3.55
200+
CHF 3.51
250+
CHF 3.46
500+
CHF 3.41
1000+
CHF 3.32
Quantity
Couldn't load pickup availability
Description
Description

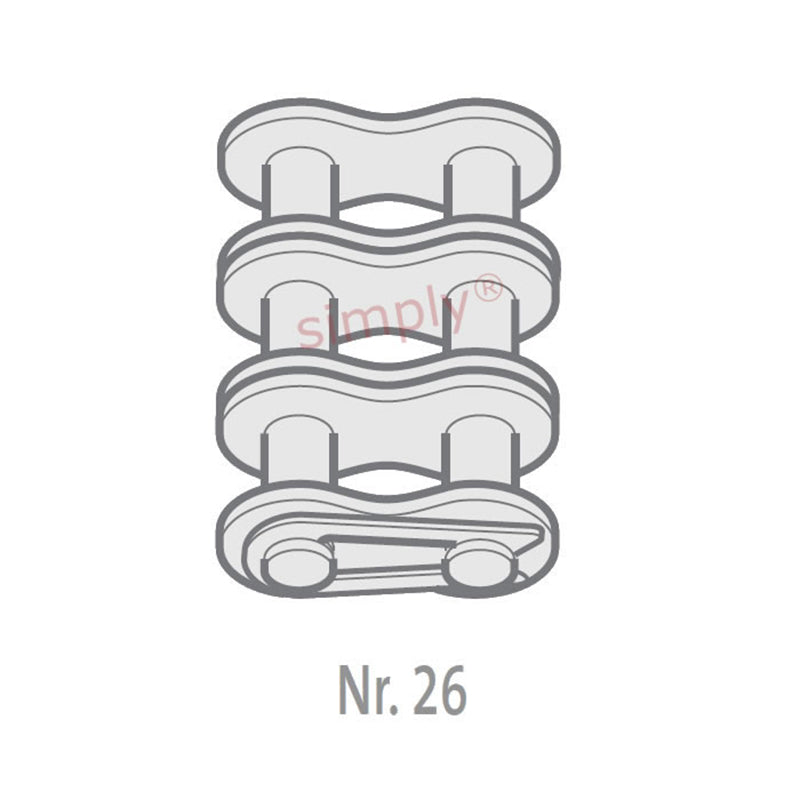

Branded CL / No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins.
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 15.09mm |
| Plate Width Inner max (E) | 2mm |
| Plate Width Outer max (F) | 2mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 57.5mm |
| Connecting Link Extension max (J) | 3.9mm |
| ISO606 Tensile Strength min | 65400 N |
| Weight | 18.11kg/m |
