• NTN 4T-02474/02420 Tapered Roller Bearing Cup and Cone Set 1.125x2.687x0.875 inch
1 1

SKU: 4T-02474/02420-NTN

NTN 4T-02474/02420 Tapered Roller Bearing Cup and Cone Set 1.125x2.687x0.875 inch

NTN 4T-02474/02420 Tapered Roller Bearing Cup and Cone Set 1.125x2.687x0.875 inch
CHF 46.00 ex VAT
CHF 46.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 36.67
5+ CHF 34.61
10+ CHF 34.20
25+ CHF 33.78
49+ CHF 33.37
74+ CHF 32.96
99+ CHF 30.90
199+ CHF 30.49
249+ CHF 30.08
499+ CHF 29.66
999+ CHF 28.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
R88H6LWMHL
Brand / Quality:
NTN - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Outside Diameter:
68.26mm = 2.687 (2-11/16) inch
Width:
22.23mm = 0.875 (7/8) inch
Style:
Taper Roller Bearing
Technical

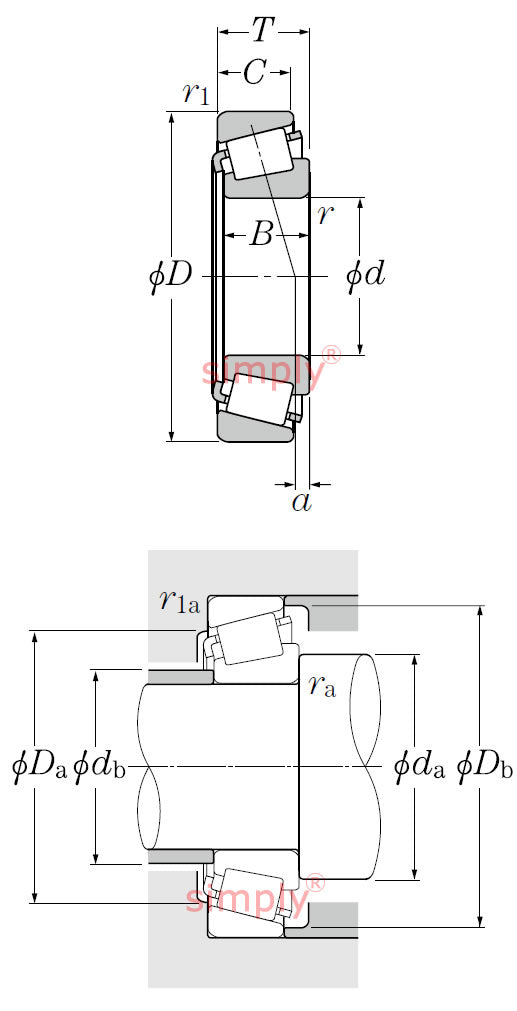

--- Bearing dimensions
d 1.125 inch (28.575mm)
D (inch) 2.687 inch (68.262mm)
T 0.875 inch (22.225mm)
B 0.875 inch (22.225mm)
C 0.69 inch (17.462mm)
--- Speeds and loads
C<sub>r</sub> 63kN
C<sub>or</sub> 67kN
Speed in grease 5800rpm
Speed in oil 7700rpm
--- Abutment dimensions
d<sub>a</sub> 36.5mm
d<sub>b</sub> 36mm
D<sub>a</sub> 59mm
D<sub>b</sub> 63mm
r<sub>as</sub> max 0.8mm
r<sub>1as</sub> max 1.5mm
Load center<sup>2</sup> 5.2mm
Constant e 0.42
Axial load factor Y<sub>2</sub> 1.44
Axial load factor Y<sub>0</sub> 0.79
Weight 0.41kg
