SKU: 475623.MB

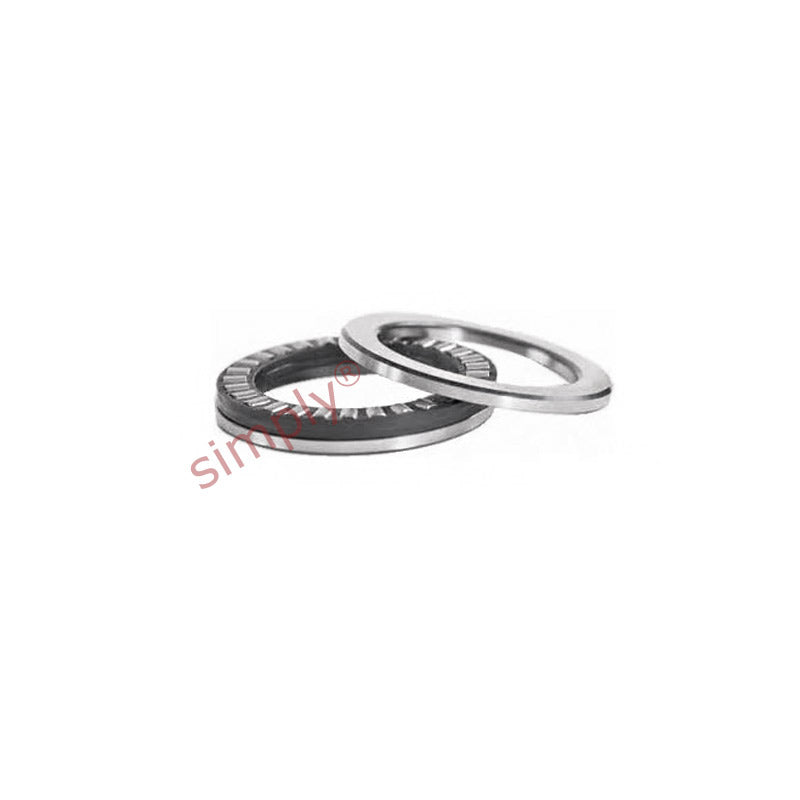

Major Brand 475623 Cylindrical Roller Thrust Bearing 711.327x964.26x127.127mm
Major Brand 475623 Cylindrical Roller Thrust Bearing 711.327x964.26x127.127mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 711.327mm
- Outside Diameter:
- 964.26mm
- Width:
- 127.127mm
Technical
Technical
| d | 711.327mm |
|---|---|
| D | 964.26mm |
| H | 127.127mm |
| Dynamic load C | 5200 kN |
| Static load Co | 36000 kN |
| Fatigue load limit Pu | 2080 kN |
| Min load factor A | 100 |
| Reference speed | 160 rpm |
| Limiting speed | 320 rpm |
| Weight | 300 kg |
