• Timken 45291/45221 TS Single-Row Taper Roller Bearing 2.25x4.125x1.1875 inch
1 1

SKU: 45291/45221-TIM

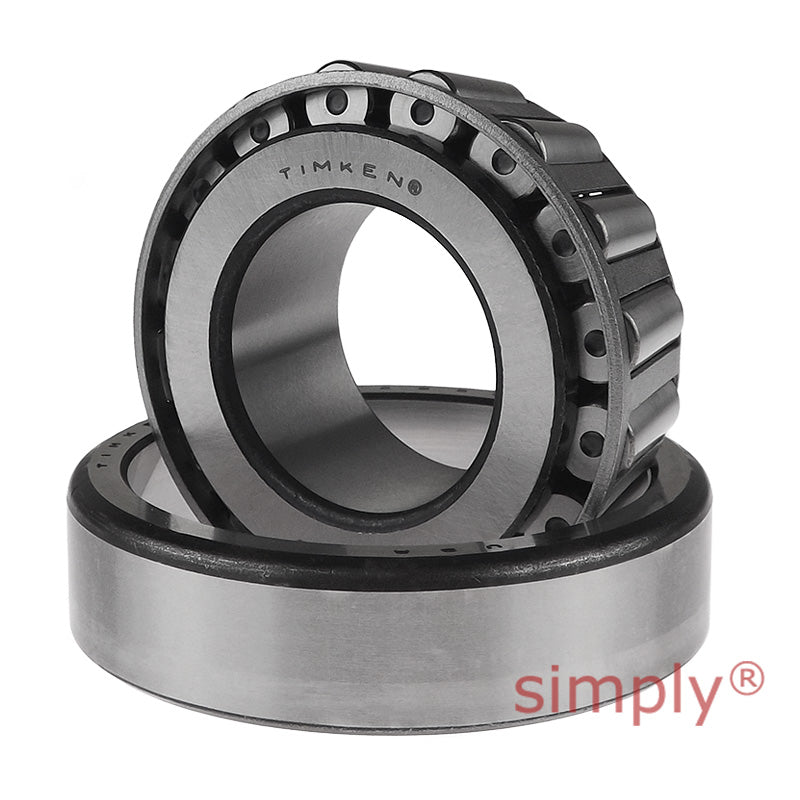

Timken 45291/45221 TS Single-Row Taper Roller Bearing 2.25x4.125x1.1875 inch

Timken 45291/45221 TS Single-Row Taper Roller Bearing 2.25x4.125x1.1875 inch
CHF 115.00 ex VAT
CHF 115.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 91.50
20+ CHF 86.36
30+ CHF 85.33
40+ CHF 84.30
50+ CHF 83.28
75+ CHF 82.25
100+ CHF 77.11
200+ CHF 76.08
250+ CHF 75.05
500+ CHF 74.02
1000+ CHF 71.97

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
57.15mm = 2.25 (2-1/4) inch
Outside Diameter:
104.78mm = 4.125 (4-1/8) inch
Width:
30.16mm = 1.187 (1-3/16) inch
Technical
d 57.15mm = 2.25 inch
D 104.775mm = 4.125 inch
T 30.162mm = 1.1875 inch
Dynamic (1) C1 142000N
Factors (5) e 0.33
Factors (5) Y 1.8
Dynamic (2) C90 36800N
Dynamic (2) Ca90 20900N
Factors (5) K 1.76
Static C0 189000N
Bearing B 30.958mm = 1.2188 inch
Bearing C 23.812mm = 0.9375 inch
Bearing a(3) -8.1mm = -0.32 inch
Shaft max shaft fillet radius R(4) 6.4mm = 0.25 inch
Shaft backing shoulder diameter da 65mm = 2.56 inch
Shaft backing shoulder diameter db 76mm = 2.99 inch
Housing backing shoulder diameter r(4) 0.8mm = 0.03 inch
Housing backing shoulder diameter Da 99mm = 3.9 inch
Housing backing shoulder diameter Db 95mm = 3.74 inch
Cage Aa 2.1mm = 0.08 inch
Cage Ab 1.8mm = 0.07 inch
G1 63.5
G2 16.9
Cg 0.0971
