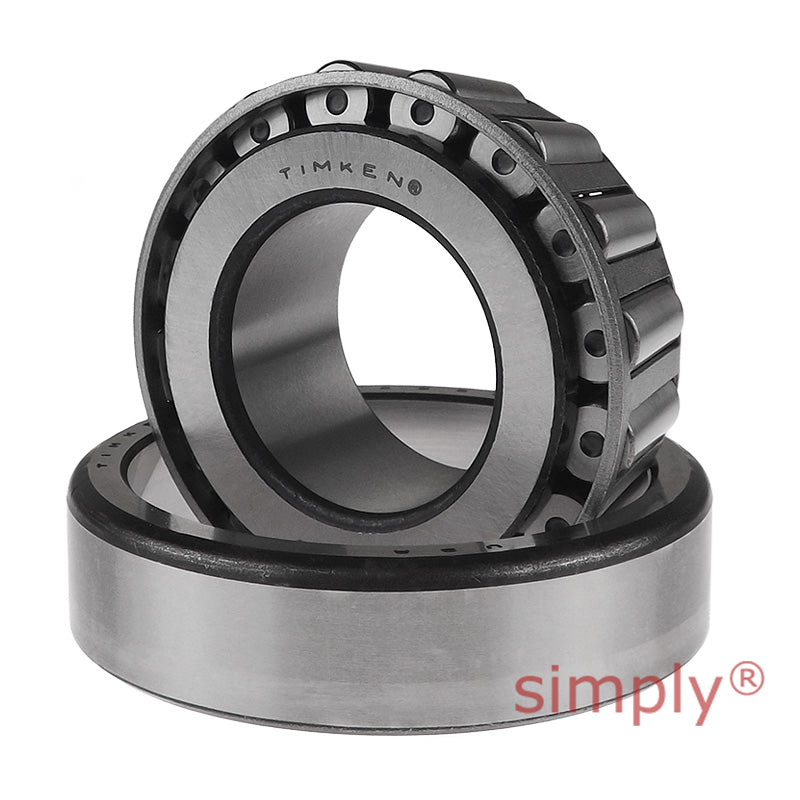

• Timken 375/3730 TS Single-Row Taper Roller Bearing 2x3.6718x1.0625 inch
1 1

SKU: 375/3730-TIM

Timken 375/3730 TS Single-Row Taper Roller Bearing 2x3.6718x1.0625 inch

Timken 375/3730 TS Single-Row Taper Roller Bearing 2x3.6718x1.0625 inch
CHF 109.00 ex VAT
CHF 109.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 86.52
20+ CHF 81.66
30+ CHF 80.69
40+ CHF 79.72
50+ CHF 78.74
75+ CHF 77.77
100+ CHF 72.91
200+ CHF 71.94
250+ CHF 70.97
500+ CHF 69.99
1000+ CHF 68.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
50.8mm = 2 inch
Outside Diameter:
93.26mm = 3.672 (3-43/64) inch
Width:
26.99mm = 1.063 (1-1/16) inch
Technical
d 50.8mm = 2 inch
D 93.264mm = 3.6718 inch
T 26.988mm = 1.0625 inch
Dynamic (1) C1 81400N
Factors (5) e 0.34
Factors (5) Y 1.77
Dynamic (2) C90 21100N
Dynamic (2) Ca90 12200N
Factors (5) K 1.73
Static C0 101000N
Bearing B 22.225mm = 0.875 inch
Bearing C 23.812mm = 0.9375 inch
Bearing a(3) -3.8mm = -0.15 inch
Shaft max shaft fillet radius R(4) 2.3mm = 0.09 inch
Shaft backing shoulder diameter da 57mm = 2.24 inch
Shaft backing shoulder diameter db 60mm = 2.36 inch
Housing backing shoulder diameter r(4) 0.8mm = 0.03 inch
Housing backing shoulder diameter Da 88mm = 3.46 inch
Housing backing shoulder diameter Db 84mm = 3.31 inch
Cage Aa 0.8mm = 0.03 inch
Cage Ab 1.4mm = 0.06 inch
G1 37.6
G2 15.4
Cg 0.0816
