SKU: 361206.MB
361206 Rubber Sealed Cam Roller Cylindrical Outer 30x72x16mm
361206 Rubber Sealed Cam Roller Cylindrical Outer 30x72x16mm
Regular price
CHF 64.00
ex VAT
Regular price
Sale price
CHF 64.00
ex VAT
In stock
Price Break
10+
CHF 50.96
19+
CHF 48.09
29+
CHF 47.52
39+
CHF 46.95
49+
CHF 46.38
74+
CHF 45.80
99+
CHF 42.94
199+
CHF 42.37
249+
CHF 41.80
499+
CHF 41.22
999+
CHF 40.08
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical

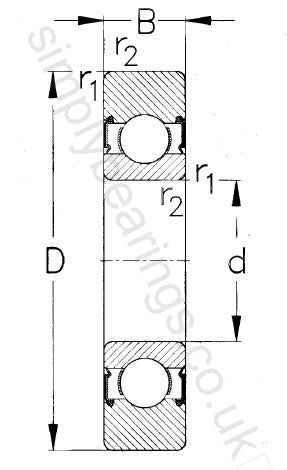

| Bore | 30mm |
|---|---|
| Outside Diameter | 72mm |
| Width | 16mm |
| Max rad R | 400mm |
| r1r2 | 1mm |
| Limiting speed | 7500 rpm |
| Dynamic load as cam roller | 19.5 kN |
| Static load as cam roller | 11.2 kN |
| Dynamic load as bearing | 17.4 kN |
| Static load as bearing | 9.3 kN |
| Max radial load | 14.3 kN |
| Max static load | 20.4 kN |
| Weight | 0.34 kg |
