SKU: 35x45x6_UOP_NAK

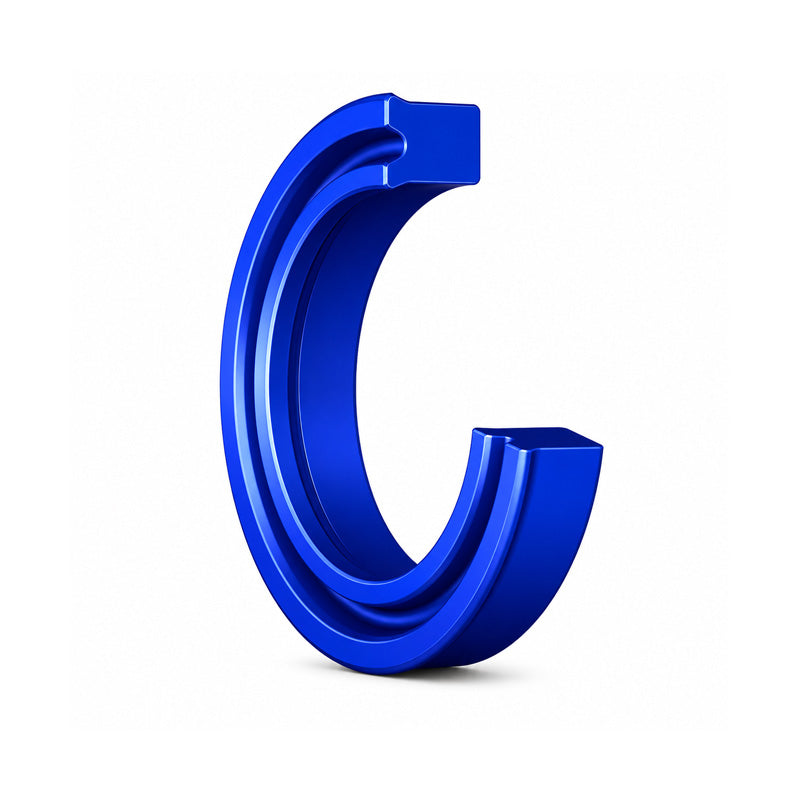

NAK 35x45x6mm UOP Polyurethane Piston Seal - Allow 7-10 Days
NAK 35x45x6mm UOP Polyurethane Piston Seal - Allow 7-10 Days
Regular price
CHF 4.00
ex VAT
Regular price
Sale price
CHF 4.00
ex VAT
In stock
Price Break
10+
CHF 3.07
19+
CHF 2.90
29+
CHF 2.87
39+
CHF 2.83
49+
CHF 2.80
74+
CHF 2.76
99+
CHF 2.59
199+
CHF 2.55
249+
CHF 2.52
499+
CHF 2.49
999+
CHF 2.42
Quantity
Couldn't load pickup availability
Share this product
Description
Description
NAK UOP Piston Seals: The UOP piston seal from NAK is a high-performance, dual-lip polyurethane seal designed for use in dynamic hydraulic applications. Engineered for installation in both single-acting and double-acting cylinders, it delivers outstanding sealing performance, low friction, and long-term fluid retention under a wide range of pressures and operating conditions.
Benefits: Easy installation, stable performance under fluctuating pressures, excellent sealing efficiency
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 45mm
- Length:
- 6mm
- Material:
- Polyurethane
- Style:
- UOP
- Colour:
- Blue

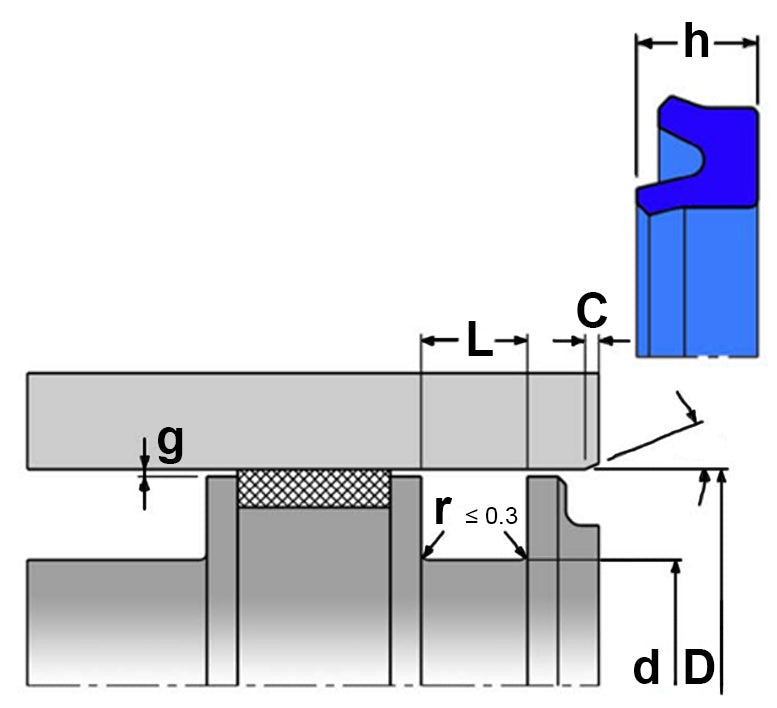

Technical
Technical
| d | 35mm |
|---|---|
| D | 45mm |
| L | 7mm |
| h | 6mm |
| C | 2.5mm |
| Inside Diameter Tolerance | h10 |
| Outside Diameter Tolerance | H9 |
| Length Tolerance | 0.2mm |
| Pressure (max) | 40 Mpa |
| Sliding Speed (max) | 0.5 m/s |
| Temperature | -40 Deg C to +100 Deg C |
| Colour | Blue |
