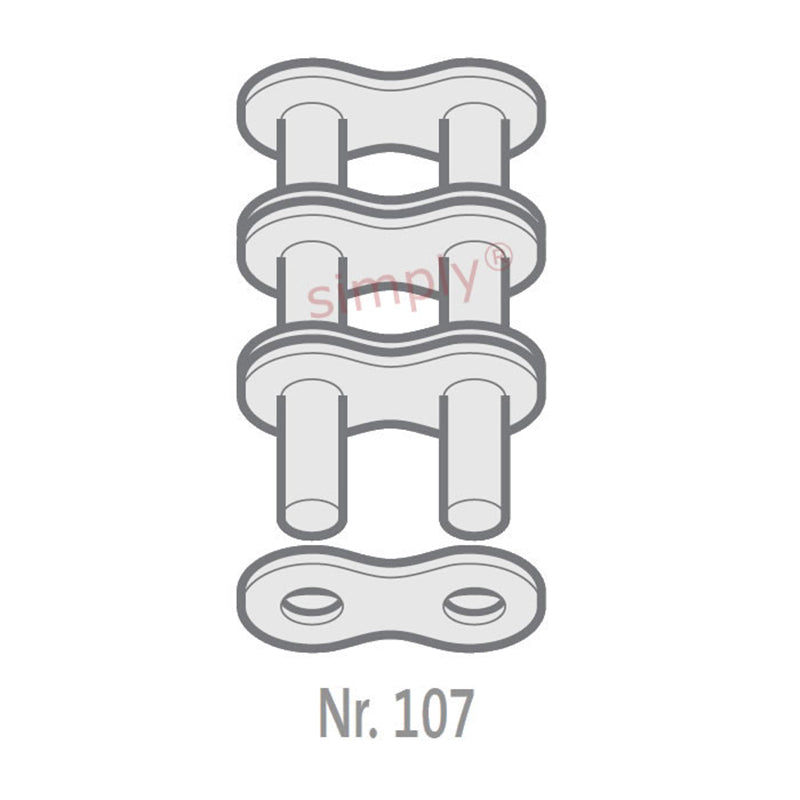

• Renold Synergy 35-3-NO107 ANSI / AS Triplex Chain Outer Link To Be Riveted 3/8 inch Pitch
1 1

SKU: 35-3-SYN-NO107-RENOLD

Renold Synergy 35-3-NO107 ANSI / AS Triplex Chain Outer Link To Be Riveted 3/8 inch Pitch

Renold Synergy 35-3-NO107 ANSI / AS Triplex Chain Outer Link To Be Riveted 3/8 inch Pitch
CHF 36.00 ex VAT
CHF 36.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 28.37
5+ CHF 26.78
10+ CHF 26.46
29+ CHF 26.14
49+ CHF 25.82
75+ CHF 25.50
100+ CHF 23.91
200+ CHF 23.59
250+ CHF 23.27
500+ CHF 22.95
1000+ CHF 22.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ANSI_NO107T_DESC
Brand / Quality:
Renold - High Quality
Pitch:
9.53mm = 0.375 (3/8) inch
Technical
Pitch (A) 0.375 inch
Pitch (A) 9.525mm
Inside Width min (B) 4.68mm
Roller Diameter max (C) 5.08mm
Plate Height max (D) 8.6mm
Plate Width Inner max (E) 1.29mm
Plate Width Outer max (F) 1.29mm
Pin Diameter max (G) 3.59mm
Pin Length max (H2) 32.2mm
Connecting Link Extension max (J) 1.7mm
Transverse Pitch nom (K) 10.13mm
ISO606 Tensile Strength min 23700 N
Weight 0.87kg/m
