SKU: 34.5.INCH.NOC90

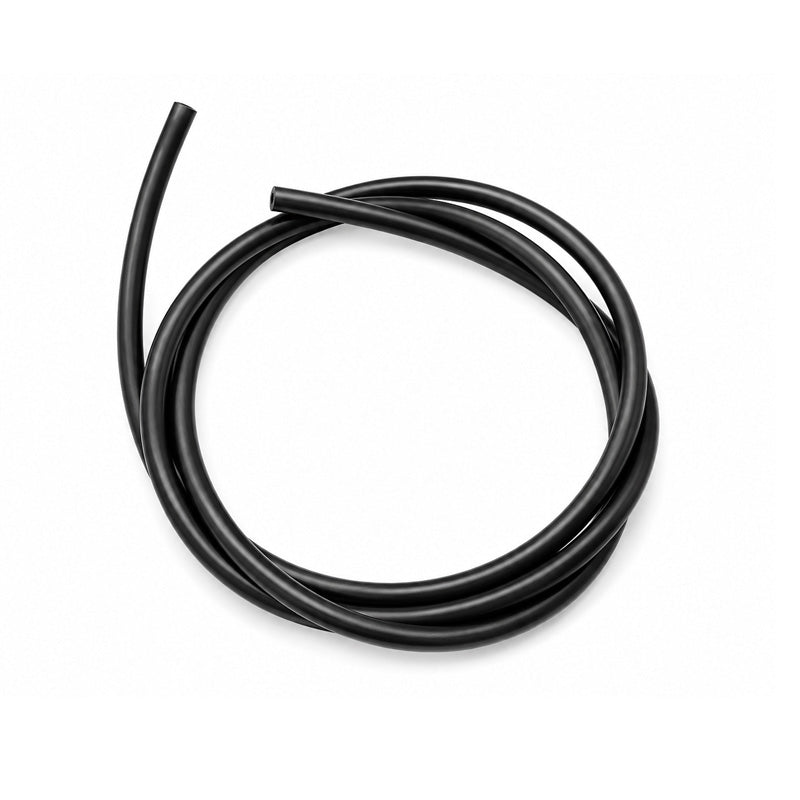

34.5 inch Section NITRILE 90 O-Ring Cord - Allow 2-3 Days
Out of stock
Share this product
Description
Nitrile Rubber O Ring Cord with 90 Shore Hardness: O-Ring Cord is supplied as a continuous extruded cord. O-ring cord can be used to fabricate custom o-rings where the standard sizes are not suitable. O-rings are probably most widely used and simplest types of seal they are found everywhere from plumbing installations to the space shuttle, they are common in engines and gearboxes, garden hoses, pumps etc. They can be used as face to face seals (like a gasket) or as shaft seals and facilitate both rotary and linear movement. They have a wide operating temperature range from - 30 deg Celsius up to + 120 deg Celsius and a high degree of chemical resistance |
- Brand / Quality:
- Simply NBR O-Ring - High Quality
- Cross Section:
- 876.3mm = 34.5 inch
- Hardness:
- 90 Shore
Technical
| --- | O-Ring Cord Dimensions |
|---|---|
| Cord Thickness (w) | 34.5 inch |
| --- | Physical Properies |
| Colour | Black |
| Material | Nitrile Buna Rubber |
| Hardness Shore A | 90 |
| Temperature Range | -35 to 110°C |
| Tensile Strength | 10 N/mm squared |
| Elongation Breaking Point | 100 to 212 % |
| Specific Gravity | 1.29 |
| Weight (each) | 0.001 kg |
| --- | Heat Aging at 100°C for 70 Hours |
| Hardness Change Point | +/-15 % |
| Tensile Strength Change | +/-20 % |
| Elongation Change | -40 % |
