SKU: 33889/33821D/X1S33889-TIM

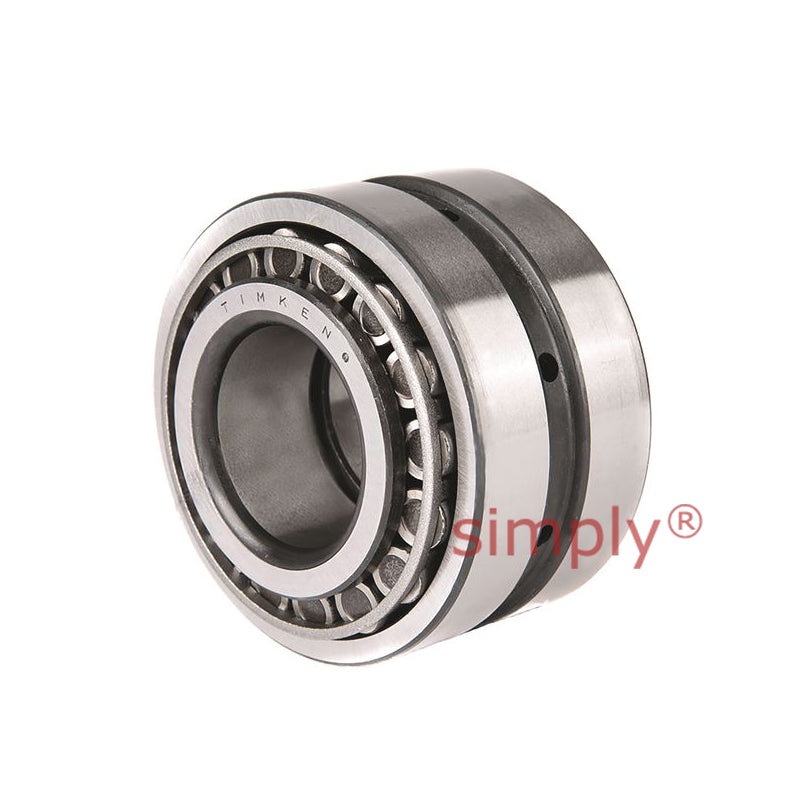

Timken 33889/33821D/X1S33889 TDO Double Outer Race Taper Roller Bearing 2x3.75x2.5x2.0624 inch
Timken 33889/33821D/X1S33889 TDO Double Outer Race Taper Roller Bearing 2x3.75x2.5x2.0624 inch
Out of stock
Description
Description

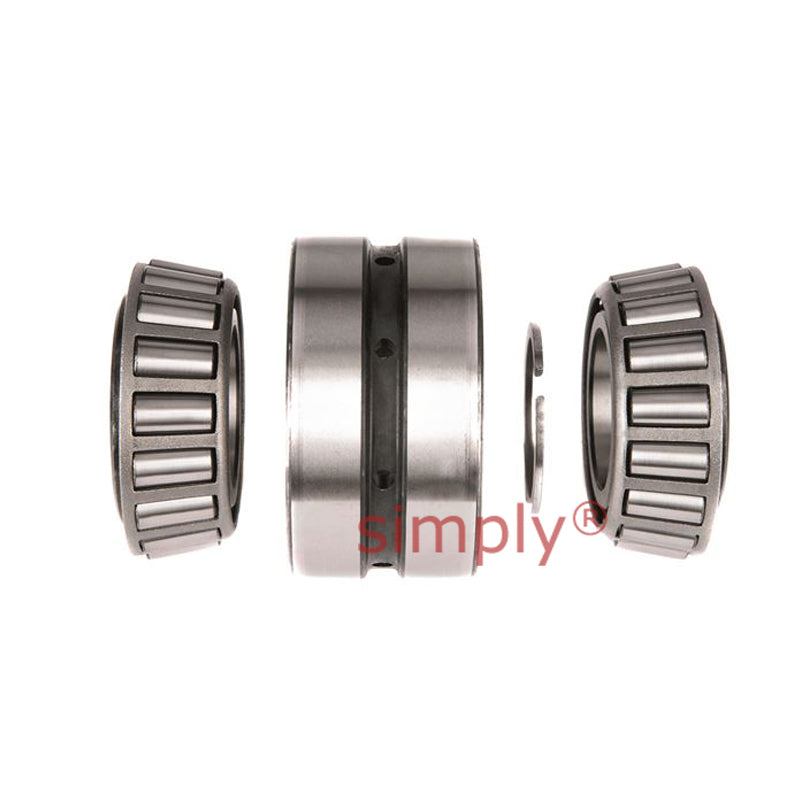

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 50.80mm = 2 inch
- Outside Diameter:
- 95.25mm = 3.75 inch
- Width:
- 63.50mm = 2.5 inch
Technical
Technical
| d | 50.8mm = 2 inch |
|---|---|
| D | 95.25mm = 3.75 inch |
| T | 63.5mm = 2.5 inch |
| C | 52.385mm = 2.0624 inch |
| Dynamic (1) C1 | 209000N |
| Factors (5) e | 0.33 |
| Factors (5) Y1 | 2.05 |
| Factors (5) Y2 | 3.05 |
| Dynamic (2) C90 | 31100N |
| Dynamic (2) Ca90 | 17600N |
| Dynamic (2) C90(2) | 54200N |
| Factors (5) K | 1.77 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 64mm = 2.52 inch |
| Housing max shaft fillet radius r(3) | 0.8mm = 0.03 inch |
| Housing backing shoulder diameter Da | 90mm = 3.54 inch |
| G1 | 52.5 |
| G2 | 18.5 |
| Cg | 0.091 |
