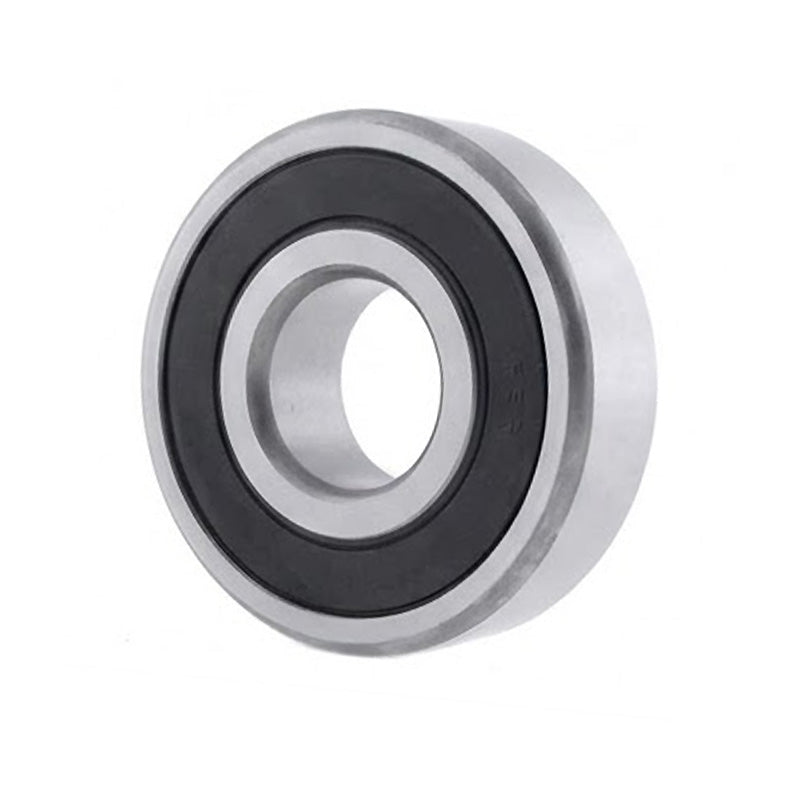

• 33092RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 45x100x39.7mm
1 1

SKU: 3309-2RS-EU

33092RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 45x100x39.7mm

33092RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 45x100x39.7mm
CHF 78.00 ex VAT
CHF 78.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 61.70
19+ CHF 58.23
29+ CHF 57.54
39+ CHF 56.85
49+ CHF 56.15
74+ CHF 55.46
99+ CHF 51.99
199+ CHF 51.30
249+ CHF 50.61
499+ CHF 49.91
999+ CHF 48.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DRACS1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
45mm
Outside Diameter:
100mm
Width:
39.7mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 45mm
D 100mm
B 39.7mm
Dynamic load C 75 kN
Static load Co 53 kN
Fatigue load limit Pu 2.24 kN
Reference speed 4800 rpm
Weight 1.25 kg
d1 55.6mm
D1 90mm
r1r2 min 1.5mm
a 58mm
da min 54mm
da max 55.5mm
Da max 91mm
ra max 1.5mm
