SKU: 3306ATN9-SKF

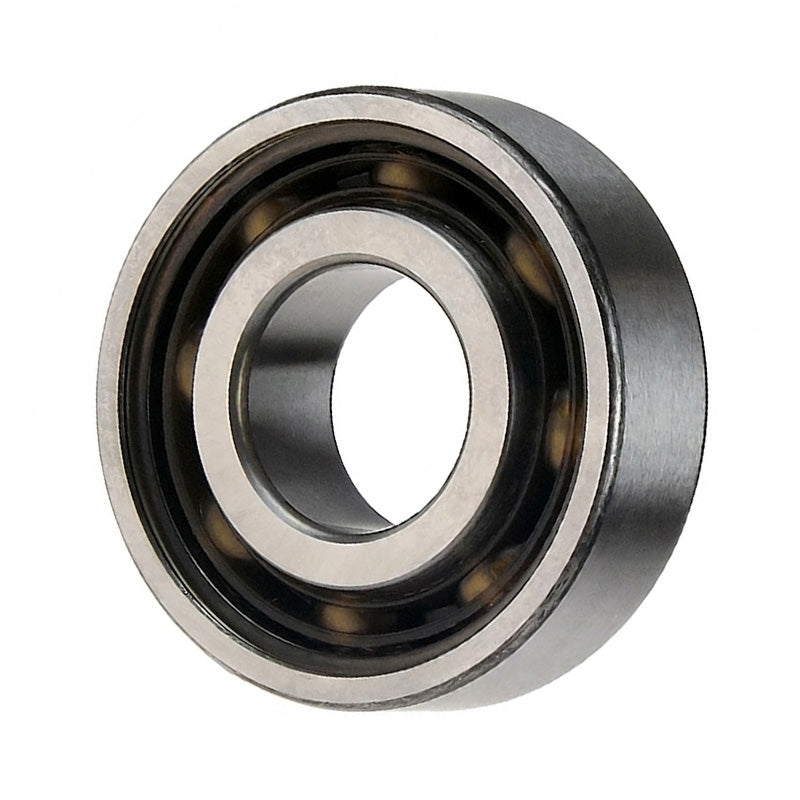

SKF 3306ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 30x72x30.2mm
SKF 3306ATN9 Double Row Angular Contact Ball Bearing with Glass Fibre Reinforced Polyamide Cage 30x72x30.2mm
Regular price
CHF 79.00
ex VAT
Regular price
Sale price
CHF 79.00
ex VAT
Equivalent to: 5306
In stock
Price Break
4+
CHF 62.77
8+
CHF 59.24
12+
CHF 58.53
16+
CHF 57.83
25+
CHF 57.12
50+
CHF 56.42
99+
CHF 52.89
199+
CHF 52.19
249+
CHF 51.48
499+
CHF 50.78
999+
CHF 49.37
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 30.2mm
- Seals / Shields:
- None
- Clearance:
- * Standard

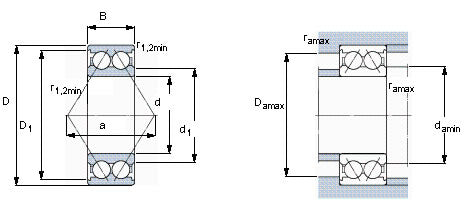

Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 30.2mm |
| Dynamic load Cr | 41.5 kN |
| Static load Cor | 27.5 kN |
| Fatigue load limit Pu | 1.16 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 9000 rpm |
| Weight | 0.53 kg |
| d1 | 39.8mm |
| D1 | 64.1mm |
| r1r2 min | 1.1mm |
| a | 42mm |
| da min | 37mm |
| Da max | 65mm |
| ra max | 1mm |
