SKU: 32232T179J2/DB32C230-SKF

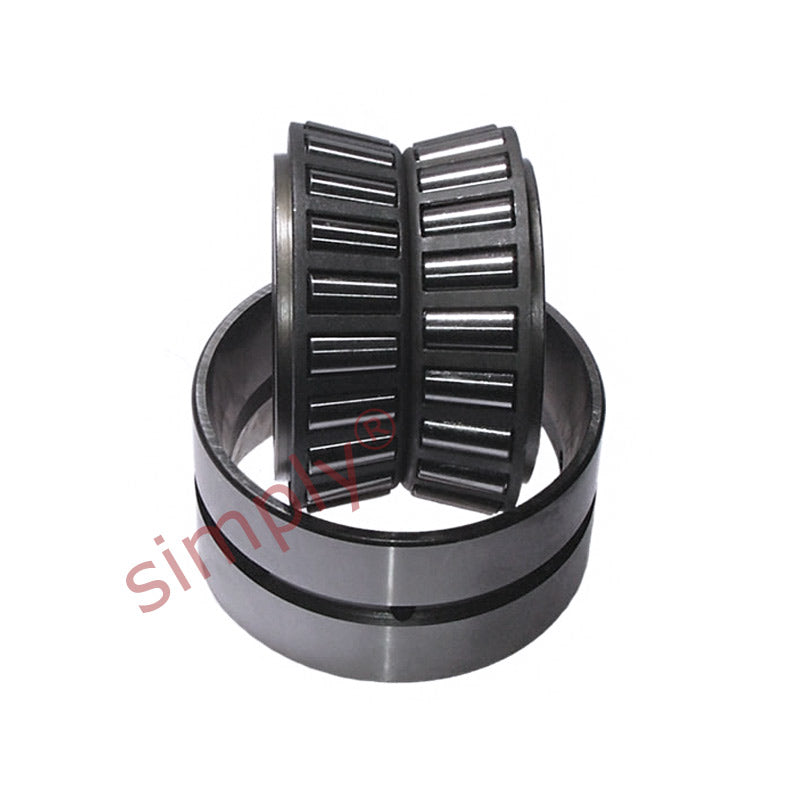

SKF 32232T179J2/DB32C230 Single Row Taper Roller Bearings Paired Back to Back 160x290x179mm
SKF 32232T179J2/DB32C230 Single Row Taper Roller Bearings Paired Back to Back 160x290x179mm
Out of stock
Share this product
Description
Description
|
Paired Metric Taper Roller Bearing Sets: These bearings have tapered inner and outer raceways between which tapered roller are arranged and are mounted in matched pairs either facing each other or back to back on a common dual outer raceway. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads typical of those experienced in wheel hubs or heavy rolling machinery. Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 290mm
- Width:
- 179mm
- Seals / Shields:
- None
Technical
Technical
| d | 160mm |
|---|---|
| D | 290mm |
| T | 179mm |
| Dynamic load | 1510 kN |
| Static load | 2800 kN |
| Fatigue load limit | 265 kN |
| Reference speed | 1300 rpm |
| Limiting speed | 2200 rpm |
| Weight | 52.5 kg |
| d1 | 221mm |
| C | 145mm |
| r1r2 min | 4mm |
| r5 min | 1mm |
| a | 150mm |
| db min | 176mm |
| Db min | 274mm |
| Cb min | 17mm |
| ra max | 3mm |
| rc max | 1mm |
| Calculation Factor e | 0.43 |
| Calculation Factor Y1 | 1.6 |
| Calculation Factor Y2 | 2.3 |
| Calculation Factor Y0 | 1.6 |
