• 3208 Budget Double Row Angular Contact Ball Bearing 40x80x30.2mm
1 1

SKU: 3208-EU

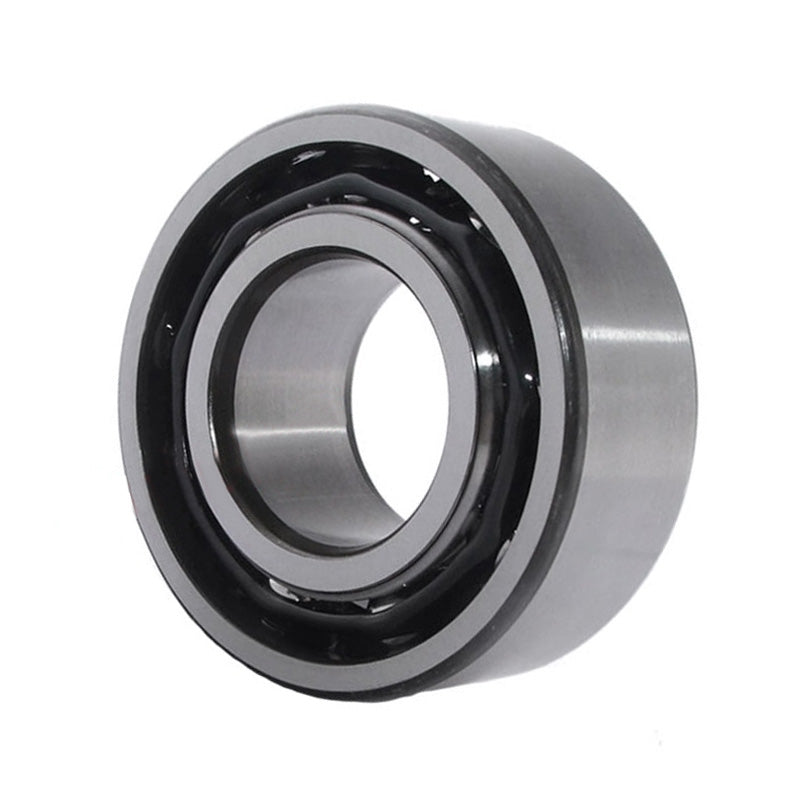

3208 Budget Double Row Angular Contact Ball Bearing 40x80x30.2mm

3208 Budget Double Row Angular Contact Ball Bearing 40x80x30.2mm
CHF 33.00 ex VAT
CHF 33.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 26.39
19+ CHF 24.91
29+ CHF 24.61
39+ CHF 24.32
49+ CHF 24.02
74+ CHF 23.72
99+ CHF 22.24
199+ CHF 21.95
249+ CHF 21.65
499+ CHF 21.35
999+ CHF 20.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
DRAC1_DESC
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
80mm
Width:
30.2mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 40mm
D 80mm
B 30.2mm
Dynamic load C 47.5 kN
Static load Co 34 kN
Fatigue load limit Pu 1.43 kN
Reference speed 8000 rpm
Limiting speed 8000 rpm
Weight 0.58 kg
d1 47.8mm
D1 72.1mm
r1r2 min 1.1mm
a 46mm
da min 47mm
Da max 73mm
ra max 1mm
