SKU: 3208-2RS-EU

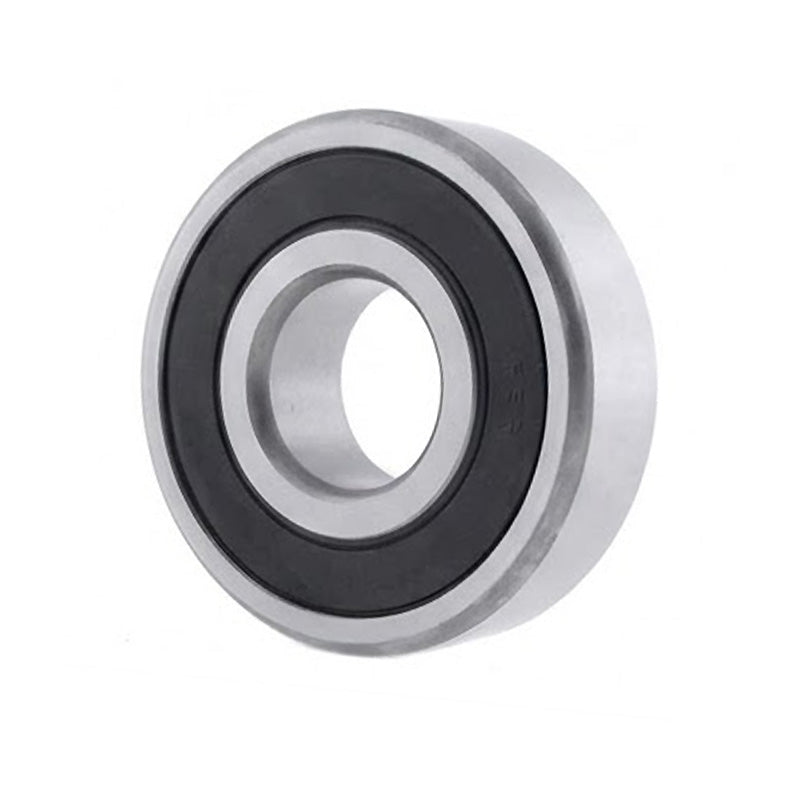

32082RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 40x80x30.2mm
32082RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 40x80x30.2mm
Regular price
CHF 36.00
ex VAT
Regular price
Sale price
CHF 36.00
ex VAT
In stock
Price Break
10+
CHF 28.80
19+
CHF 27.18
29+
CHF 26.86
39+
CHF 26.54
49+
CHF 26.21
74+
CHF 25.89
99+
CHF 24.27
199+
CHF 23.95
249+
CHF 23.62
499+
CHF 23.30
999+
CHF 22.65
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 30.2mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 30.2mm |
| Dynamic load C | 47.5 kN |
| Static load Co | 34 kN |
| Fatigue load limit Pu | 1.43 kN |
| Reference speed | 5600 rpm |
| Weight | 0.57 kg |
| d1 | 47.8mm |
| D1 | 72.1mm |
| r1r2 min | 1.1mm |
| a | 46mm |
| da min | 47mm |
| da max | 47mm |
| Da max | 73mm |
| ra max | 1mm |
