• SKF 3205A2RS1MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 25x52x20.6mm
  • SKF 3205A2RS1MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 25x52x20.6mm
  • SKF 3205A2RS1MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 25x52x20.6mm
1 3

SKU: 3205A-2RS1/MT33-SKF

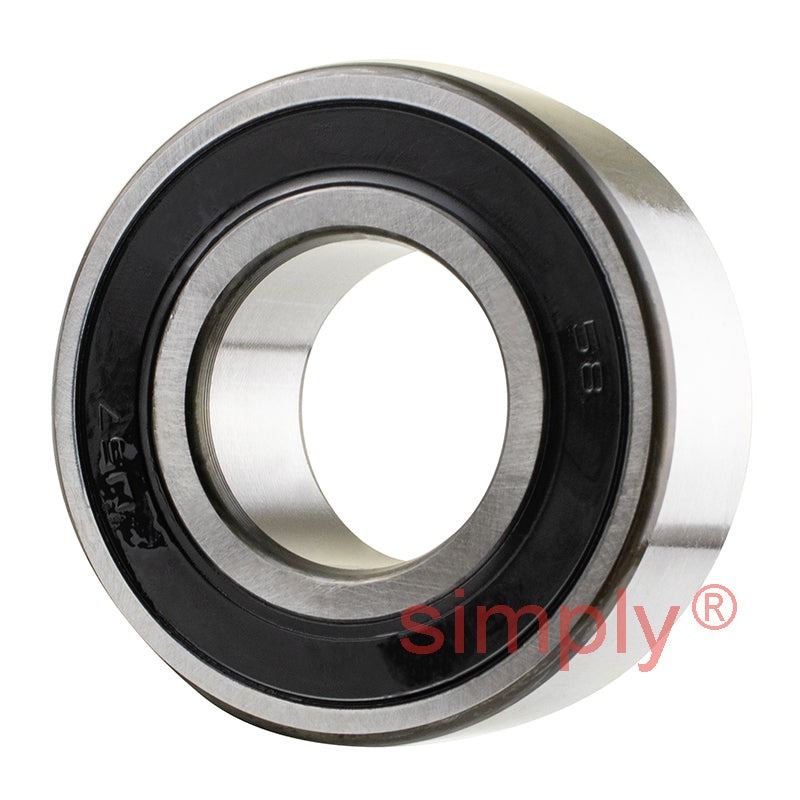

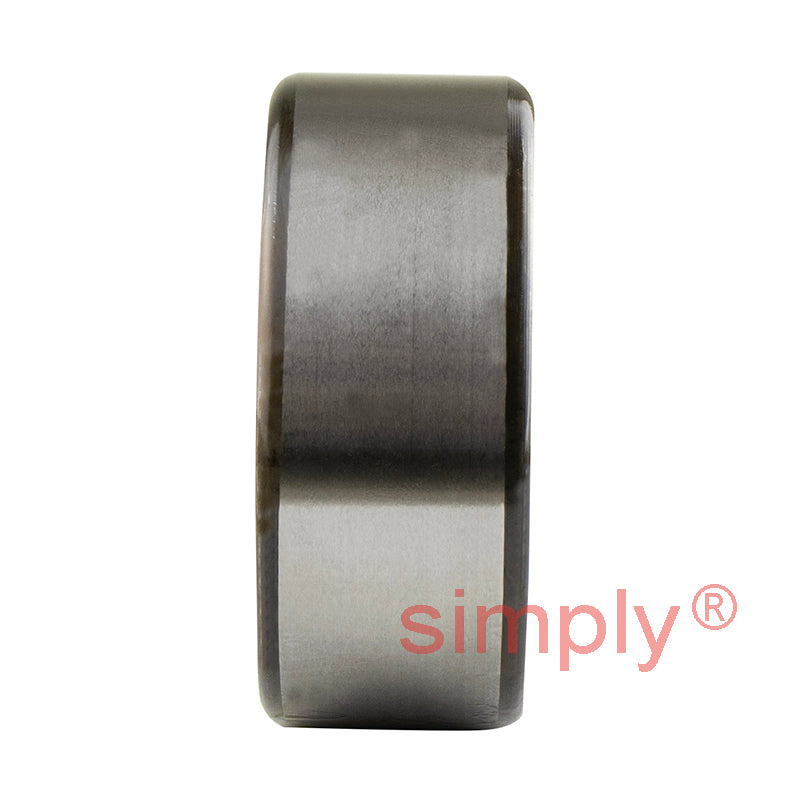

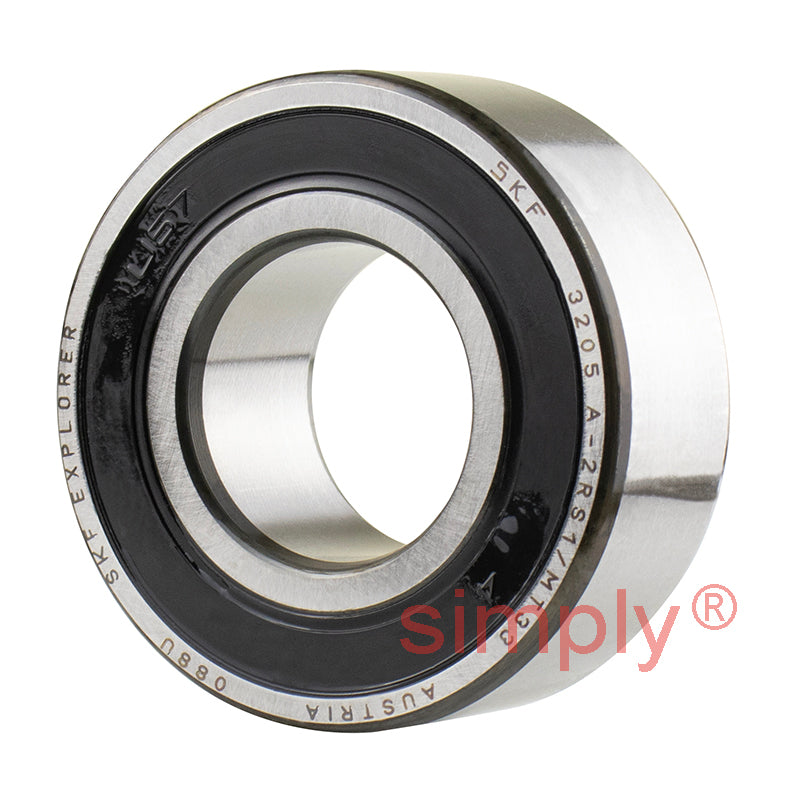

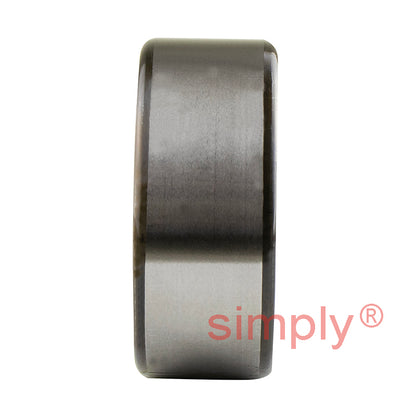

SKF 3205A2RS1MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 25x52x20.6mm

SKF 3205A2RS1MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 25x52x20.6mm
CHF 63.00 ex VAT
CHF 63.00 ex VAT
Sale Sold out

Equivalent to: 5205

In stock

Price Break
4+ CHF 50.24
8+ CHF 47.42
12+ CHF 46.86
16+ CHF 46.29
25+ CHF 45.73
50+ CHF 45.16
99+ CHF 42.34
199+ CHF 41.78
249+ CHF 41.21
499+ CHF 40.65
999+ CHF 39.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Brand / Quality:
SKF - High Quality
Inside Diameter:
25mm
Outside Diameter:
52mm
Width:
20.6mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 25mm
D 52mm
B 20.6mm
Dynamic load Cr 21.6 kN
Static load Cor 14.3 kN
Fatigue load limit Pu 0.6 kN
Max speed 12000 rpm
Max speed 8500 rpm
Weight 0.18 kg
d1 32.7mm
D1 45.9mm
r1r2 min 1mm
a 30mm
da min 30.6mm
da max 32.5mm
Da max 46.4mm
ra max 1mm
