SKU: 3202-2RS-EU

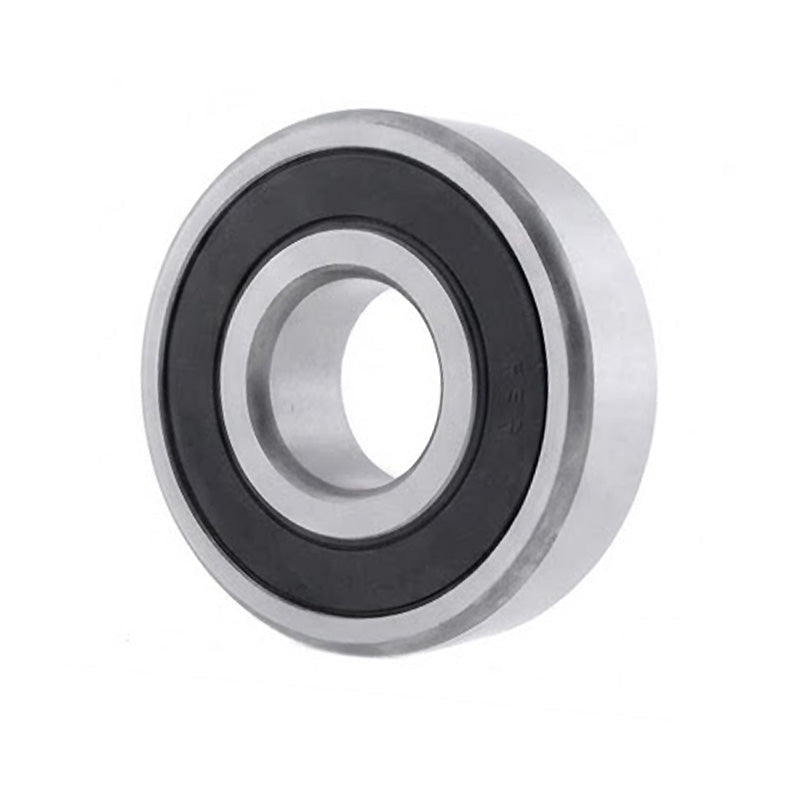

32022RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 15x35x15.9mm
32022RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 15x35x15.9mm
Regular price
CHF 19.00
ex VAT
Regular price
Sale price
CHF 19.00
ex VAT
In stock
Price Break
10+
CHF 14.84
19+
CHF 14.00
29+
CHF 13.84
39+
CHF 13.67
49+
CHF 13.50
74+
CHF 13.34
99+
CHF 12.50
199+
CHF 12.34
249+
CHF 12.17
499+
CHF 12.00
999+
CHF 11.67
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 15.9mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 15.9mm |
| Dynamic load C | 11.2 kN |
| Static load Co | 6.8 kN |
| Fatigue load limit Pu | 0.285 kN |
| Reference speed | 14000 rpm |
| Weight | 0.066 kg |
| d1 | 20.2mm |
| D1 | 30.7mm |
| r1r2 min | 0.6mm |
| a | 21mm |
| da min | 19.4mm |
| da max | 20mm |
| Da max | 30.7mm |
| ra max | 0.6mm |
