SKU: 319440DA-2LS-SKF

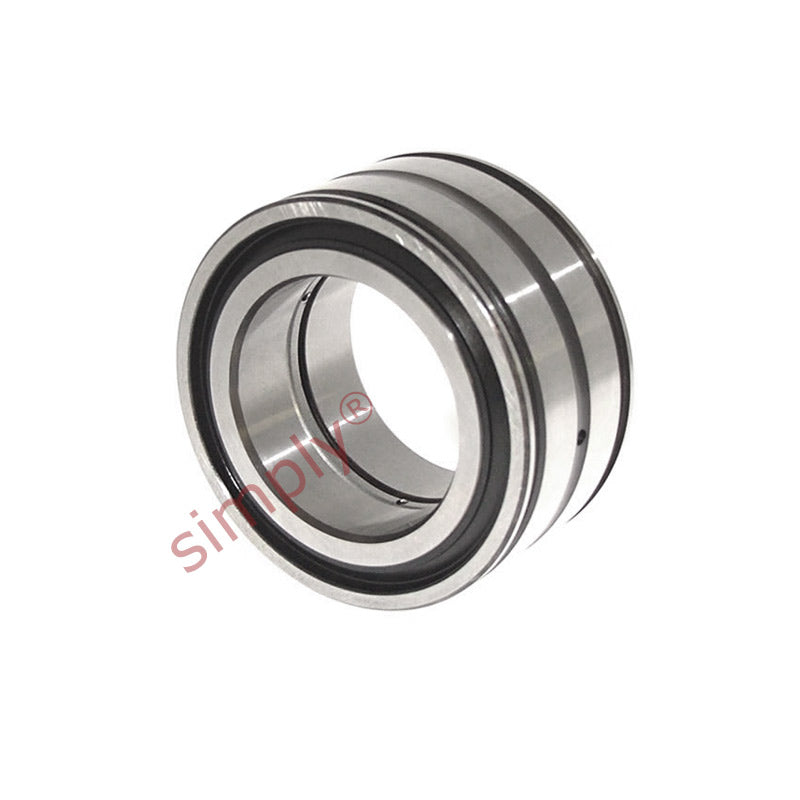

SKF 319440DA2LS Sealed Double Row Full Complement Cylindrical Roller Bearing 200x270x80mm

Name: SKF 319440DA2LS Sealed Double Row Full Complement Cylindrical Roller Bearing 200x270x80mm
Brand: SKF
SKU: 319440DA-2LS-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF NNF - LSV Series Double Row Full Complement Cylindrical Roller Bearings: The outer ring has a central flange and a two piece inner ring which has two flanges on each half, each half is held together by a retaining ring which also retains the outer ring, each bearing is supplied assembled with two rubber seals. The outer race is 1mm narrower than the inner and is supplied with two snap rings grooves for alternative mounting arrangements with sleeves etc.
Benefits: Snap ring groove location, sealed and greased, tilting moment tolerant

Brand / Quality:: SKF - High Quality
Inside Diameter:: 200mm
Outside Diameter:: 270mm
Width:: 80mm
Seals / Shields:: Rubber Sealed
Clearance:: * Standard

Technical

d	200mm
D	270mm
B	80mm
C	79mm
Dynamic load C	561 kN
Static load Co	1250 kN
Fatigue load limit Pu	125 kN
Limiting speed	430 rpm
Weight	13.2 kg
d1	227mm
D1	264mm
E	249.6mm
C1+0.2	73.2mm
C2	2.9mm
b	5.2mm
b1	7mm
K	4mm
r min	1.8mm
r3r4 min	0.6mm
da min	207mm
das	223mm
Da max	265mm
Ca1 - 0.2	65mm
Ca2 - 0.2	63mm
ra max	1mm
rb max	0.6mm
Snap ring	SW270
Din 471	270x5
