SKU: 315SPZ1-MB

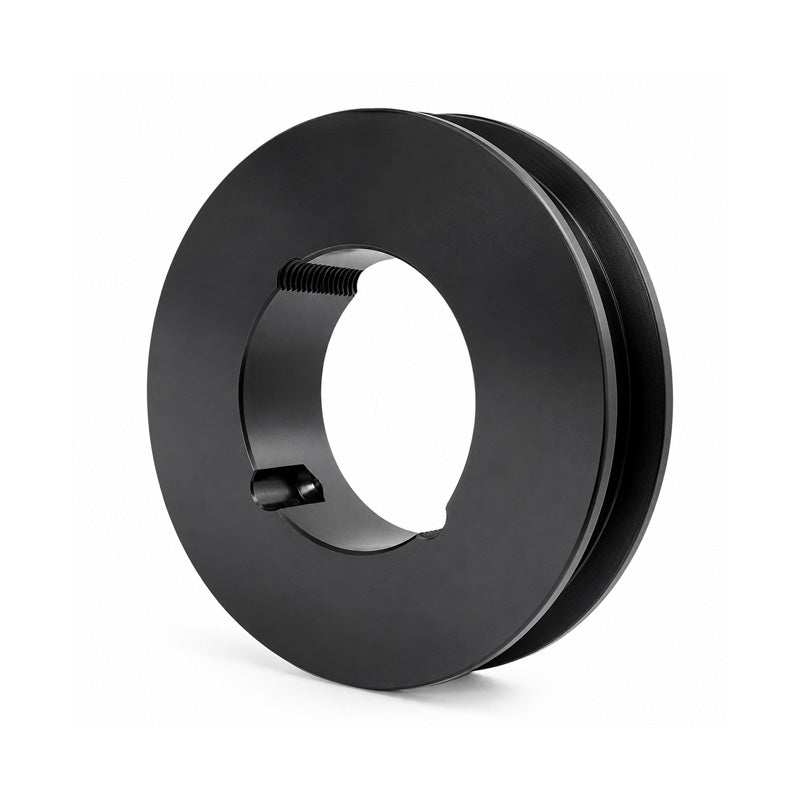

315X1SPZ 315mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 1 Groove (Bush not Incl.)
315X1SPZ 315mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 1 Groove (Bush not Incl.)
Regular price
CHF 44.00
ex VAT
Regular price
Sale price
CHF 44.00
ex VAT
In stock
Price Break
3+
CHF 34.51
5+
CHF 32.57
9+
CHF 32.18
19+
CHF 31.79
49+
CHF 31.40
74+
CHF 31.02
99+
CHF 29.08
199+
CHF 28.69
249+
CHF 28.30
499+
CHF 27.91
999+
CHF 27.14
Quantity
Couldn't load pickup availability
Description
Description
|
SPZ Section V Belt Pulleys: Manufactured from fine grain gray cast iron grade GG25 and are phosphated. Groove dimensions conform to ISO 4183 for both eccentricity of outside diameter to bore and groove side wobble tolerance. They are suitable for use with all wedge belts according to ISO 4184 and all classical V-belts according to ISO 4184. Speeds: Circumferential speeds of up to 40 m/s are permissible. All our pulleys are balanced to grade Q6.3 or better. Pulleys with a weight of 100kg and above are dynamically balanced (two planes). All pulleys with a weight less than 100kg are statically machine balanced (one plane). Suitability: Suitable for use with Z section and SPZ, XPZ and 3V section V-Belts Benefits: Cost effective replacement |
- Brand / Quality:
- Major Brand - High Quality
- Grooves:
- 1
- Outside Diameter:
- 319.6mm
- Pitch Diameter:
- 315mm
- Max Bore:
- 50mm
Technical
Technical
| Number of Grooves | 1 |
|---|---|
| Bush | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2012+tapered+locking+bush">2012 Click Here</a> |
| Pitch Diameter B | 315mm |
| Overall Outer Diameter C | 319.6mm |
| Max Bore A | 50mm |
| Outer Hub Diameter E | 112mm |
| Overall Sheave Depth F | 16mm |
| Bush Seat Length G | 32mm |
| Inner Recess Diameter D | 286mm |
| Inner Recess Length H | 8mm |
