SKU: 312-SKF

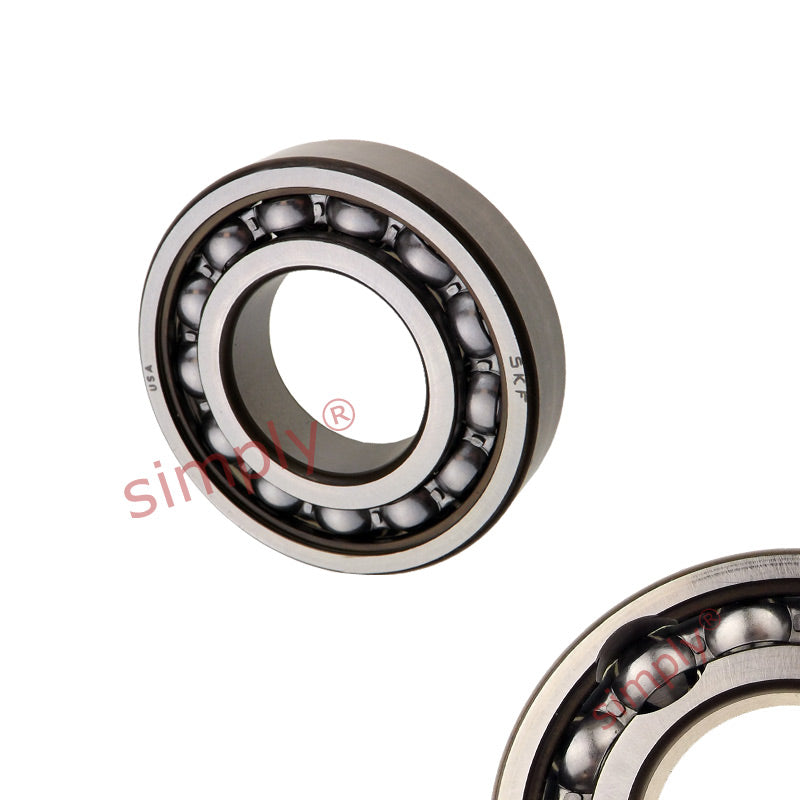

SKF 312 Open Type Filling Slot Ball Bearing 60x130x31mm
SKF 312 Open Type Filling Slot Ball Bearing 60x130x31mm
Regular price
CHF 199.00
ex VAT
Regular price
Sale price
CHF 199.00
ex VAT
In stock
Price Break
10+
CHF 159.03
19+
CHF 150.10
29+
CHF 148.31
39+
CHF 146.52
49+
CHF 144.74
74+
CHF 142.95
99+
CHF 134.02
199+
CHF 132.23
249+
CHF 130.44
499+
CHF 128.66
999+
CHF 125.08
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

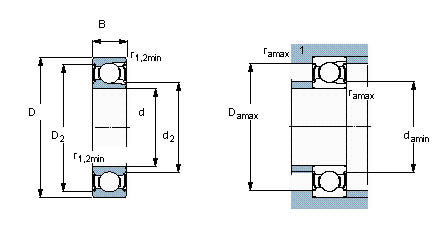

| d | 60mm |
|---|---|
| D | 130mm |
| B | 31mm |
| Dynamic load C | 91.3 kN |
| Static load Co | 78 kN |
| Fatigue load limit Pu | 3.35 kN |
| Reference speed | 9500 rpm |
| Limiting speed | 6000 rpm |
| Weight | 1.85 kg |
| d1 | 80.3mm |
| D2 | 113mm |
| r1r2 min | 2.1mm |
| da min | 71mm |
| Da max | 119mm |
| ra max | 2mm |
