SKU: 306805.2RSR.MB
3068052RSR Cam Roller Double Row Crowned Outer Rubber Sealed 25x72x25.4mm
3068052RSR Cam Roller Double Row Crowned Outer Rubber Sealed 25x72x25.4mm
Regular price
CHF 129.00
ex VAT
Regular price
Sale price
CHF 129.00
ex VAT
In stock
Price Break
10+
CHF 102.75
19+
CHF 96.98
29+
CHF 95.83
39+
CHF 94.67
49+
CHF 93.52
74+
CHF 92.36
99+
CHF 86.59
199+
CHF 85.43
249+
CHF 84.28
499+
CHF 83.13
999+
CHF 80.82
Quantity
Couldn't load pickup availability
Description
Description
|
Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. Benefits: Tolerate high loads, shock loads, misalignment when running in tracks |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 72mm
- Width:
- 25.4mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical

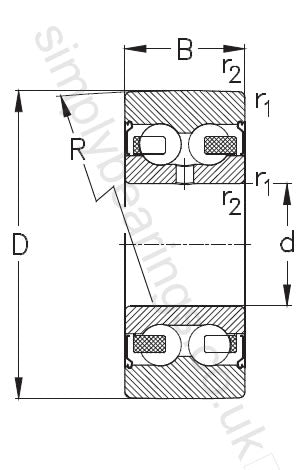

| Bore | 25mm |
|---|---|
| Outside Diameter | 72mm |
| Width | 25.4mm |
| Max rad R | 400mm |
| r1r2 | 1.1mm |
| Limiting speed | 5200 rpm |
| Dynamic load as cam roller | 32.5 kN |
| Static load as cam roller | 21.6 kN |
| Dynamic load as bearing | 27.5 kN |
| Static load as bearing | 19.5 kN |
| Max radial load | 34.5 kN |
| Max static load | 39 kN |
| Weight | 0.5 kg |
