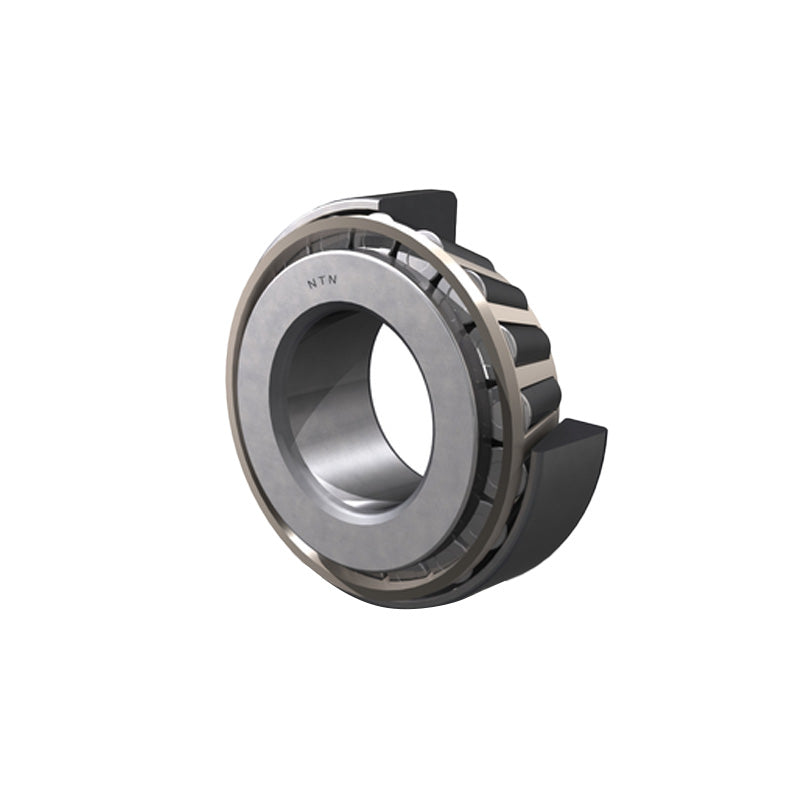

NTN 30338UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 190x400x86mm

NTN 30338UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 190x400x86mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 190mm
D 400mm
T 86mm
B 78mm
C 65mm
r<sub>s</sub> min 5mm
r<sub>ls</sub> min 5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 1200kN
Static load C<sub>or</sub> 1200kN
Fatigue Load limit C<sub>u</sub> 106kN
Allowable Speed in grease 900rpm
Allowable Speed in oil 1300rpm
--- Abutment dimensions
d<sub>a</sub> min 212mm
d<sub>b</sub> max 241mm
D<sub>a</sub> max 378mm
D<sub>a</sub> min 335mm
D<sub>b</sub> min 366.5mm
S<sub>a</sub> min 2.3mm
S<sub>b</sub> min 21mm
r<sub>as</sub> max 4mm
r<sub>1as</sub> max 4mm
Load center a 74.5mm
Constant e 0.37mm
Y<sub>2</sub> 1.6mm
Y<sub>0</sub> 0.88mm
Weight 43.6kg
