SKU: 28B-2-BB-100FT-RENOLD

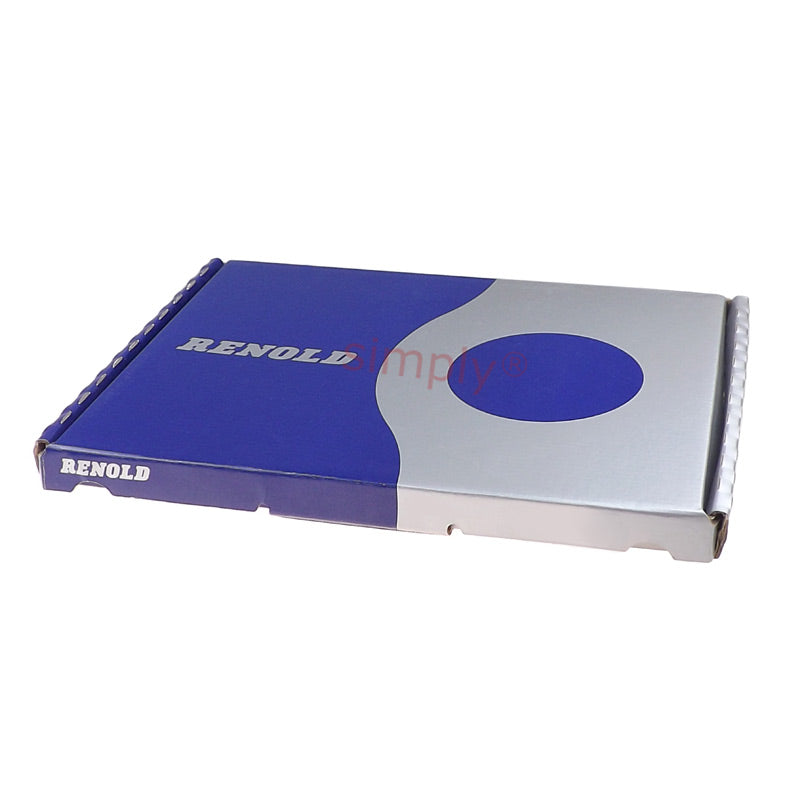

Renold Blue Box 28B-2 BS Duplex Roller Chain 1-3/4 inch Pitch - 100 Feet Length Allow 2-3 Days
Equivalent to: 28B-2
Out of stock
Description
|
Renold Blue Box Premier Wear Chain: The consistent performance of Renold roller chain is ensured by a programme of continuous testing and quality audits on manufacturing and assembly processes. Renold's unique control over pins and bush contact ensures that wear life exceeds other brands. In use, little chain adjustment is required during commissioning. Highly fatigue resistant, Renold roller chain gives up to four times the life of other leading competitor chains. The breaking loads of Renold Chains goes way beyond the minimum requirements of the international standards. The specification of Renold roller chain has evolved from decades of design, test and application experience which delivers excellent product reliability and consistency. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 27.94mm |
| Plate Height max (D) | 37.08mm |
| Plate Width Inner max (E) | 7.62mm |
| Plate Width Outer max (F) | 6.35mm |
| Pin Diameter max (G) | 15.9mm |
| Pin Length max (H2) | 123.7mm |
| Connecting Link Extension max (J) | 6.8mm |
| Transverse Pitch nom (K) | 59.56mm |
| ISO606 Tensile Strength min | 360000 N |
| Weight | 18.6kg/m |
