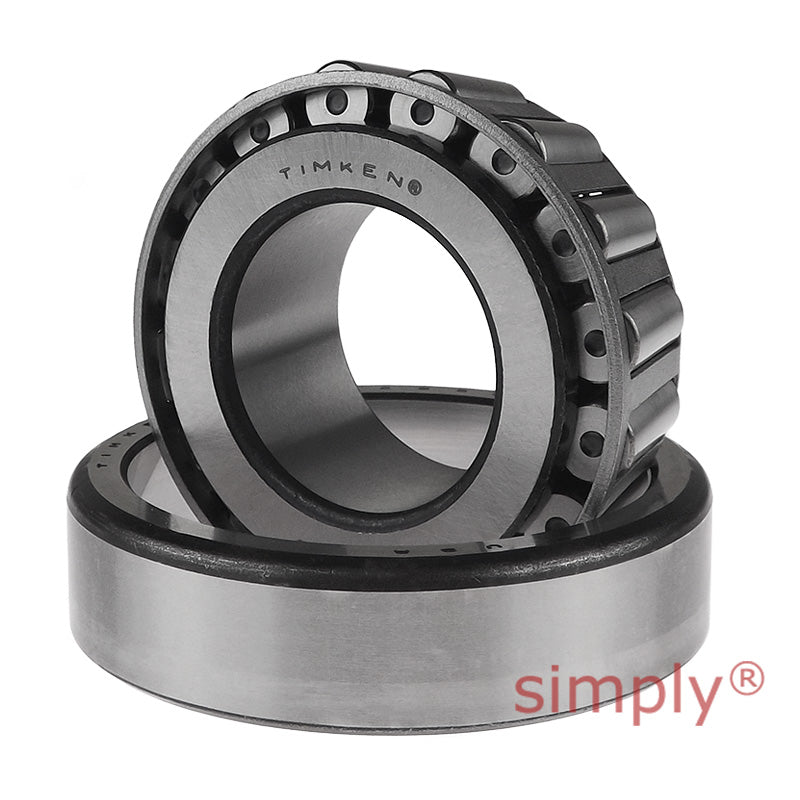

• Timken 2878/2821 TS Single-Row Taper Roller Bearing 1.375x2.875x0.875 inch
1 1

SKU: 2878/2821-TIM

Timken 2878/2821 TS Single-Row Taper Roller Bearing 1.375x2.875x0.875 inch

Timken 2878/2821 TS Single-Row Taper Roller Bearing 1.375x2.875x0.875 inch
CHF 245.00 ex VAT
CHF 245.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 195.50
20+ CHF 184.51
30+ CHF 182.32
40+ CHF 180.12
50+ CHF 177.92
75+ CHF 175.73
100+ CHF 164.74
200+ CHF 162.55
250+ CHF 160.35
500+ CHF 158.15
1000+ CHF 153.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
34.93mm = 1.375 (1-3/8) inch
Outside Diameter:
73.03mm = 2.875 (2-7/8) inch
Width:
22.23mm = 0.875 (7/8) inch
Technical
d 34.925mm = 1.375 inch
D 73.025mm = 2.875 inch
T 22.225mm = 0.875 inch
Dynamic (1) C1 67700N
Factors (5) e 0.37
Factors (5) Y 1.63
Dynamic (2) C90 17600N
Dynamic (2) Ca90 11100N
Factors (5) K 1.59
Static C0 83800N
Bearing B 23.812mm = 0.9375 inch
Bearing C 17.462mm = 0.6875 inch
Bearing a(3) -5.6mm = -0.22 inch
Shaft max shaft fillet radius R(4) 0.8mm = 0.03 inch
Shaft backing shoulder diameter da 41mm = 1.61 inch
Shaft backing shoulder diameter db 42mm = 1.65 inch
Housing backing shoulder diameter r(4) 0.8mm = 0.03 inch
Housing backing shoulder diameter Da 68mm = 2.68 inch
Housing backing shoulder diameter Db 65mm = 2.56 inch
Cage Aa 0.9mm = 0.04 inch
Cage Ab 0.2mm = 0.01 inch
G1 23.1
G2 12.4
Cg 0.0718
