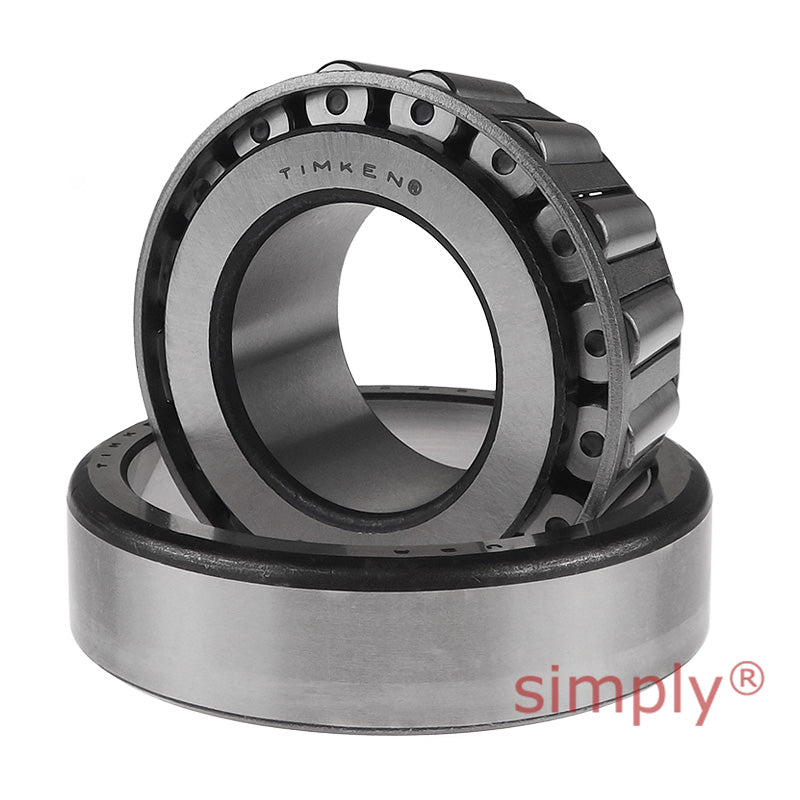

• Timken 26112/26300 TS Single-Row Taper Roller Bearing 1.125x3x0.748 inch
1 1

SKU: 26112/26300-TIM

Timken 26112/26300 TS Single-Row Taper Roller Bearing 1.125x3x0.748 inch

Timken 26112/26300 TS Single-Row Taper Roller Bearing 1.125x3x0.748 inch
CHF 208.00 ex VAT
CHF 208.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 166.17
20+ CHF 156.84
30+ CHF 154.97
40+ CHF 153.10
50+ CHF 151.24
75+ CHF 149.37
100+ CHF 140.03
200+ CHF 138.17
250+ CHF 136.30
500+ CHF 134.43
1000+ CHF 130.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Outside Diameter:
76.2mm = 3 inch
Width:
18.999mm = 0.748 inch
Technical
d 28.575mm = 1.125 inch
D 76.2mm = 3 inch
T 19mm = 0.748 inch
Dynamic (1) C1 54400N
Factors (5) e 0.36
Factors (5) Y 1.67
Dynamic (2) C90 14100N
Dynamic (2) Ca90 8700N
Factors (5) K 1.62
Static C0 60100N
Bearing B 18.923mm = 0.745 inch
Bearing C 15.875mm = 0.625 inch
Bearing a(3) -4.1mm = -0.16 inch
Shaft max shaft fillet radius R(4) 1.5mm = 0.06 inch
Shaft backing shoulder diameter da 35mm = 1.38 inch
Shaft backing shoulder diameter db 37mm = 1.46 inch
Housing backing shoulder diameter r(4) 1.5mm = 0.06 inch
Housing backing shoulder diameter Da 66mm = 2.6 inch
Housing backing shoulder diameter Db 64mm = 2.52 inch
Cage Aa 0.6mm = 0.02 inch
Cage Ab 1.1mm = 0.04 inch
G1 16.1
G2 10.1
Cg 0.063
