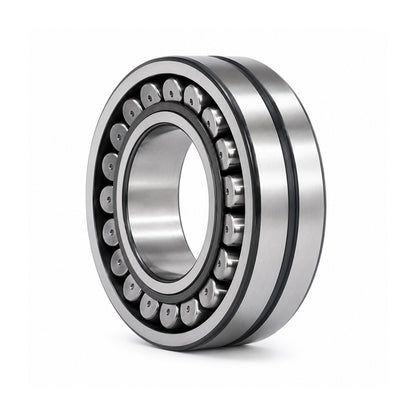

FAG 23224E1AKMC3 X-life Spherical Roller Bearing with AHX3224A Withdrawal Sleeve 115x215x76mm

Name: FAG 23224E1AKMC3 X-life Spherical Roller Bearing with AHX3224A Withdrawal Sleeve 115x215x76mm
Brand: FAG
SKU: 23224-E1A-K-M-C3u?-FAG
Price: 859.00 CHF
Availability: InStock

CHF 859.00 ex VAT

Sale Sold out

In stock

Price Break

3+ CHF 686.80

4+ CHF 648.21

9+ CHF 640.49

19+ CHF 632.78

29+ CHF 625.06

39+ CHF 617.34

49+ CHF 578.76

59+ CHF 571.04

249+ CHF 563.33

499+ CHF 555.61

999+ CHF 540.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SPHERWITHD_DESC

Brand / Quality:: FAG - High Quality
Inside Diameter:: 115mm
Outside Diameter:: 215mm
Width:: 76mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d1H	115mm
d	120mm
D	215mm
B	76mm
r min	2.1mm
D1	185.5mm
ds	4.8mm
ns	9.5mm
a	4mm
b	13mm
Thread d2G	M130X2
l	90mm
da min	132mm
Da max	203mm
ra max	2.1mm
Dynamic load Cr	820000 N
Static load C0r	1020000 N
e	0.33
Y1	2.03
Y2	3.02
Y0	1.98
Fatigue load limit Cur	80000 N
Limiting speed nG	2800 rpm
Reference speed nB	1910 rpm
Bearing weight	11.4 kg
Withdrawal sleeve weight	1.2 kg
