SKU: 23218-E1-K-TVPB-FAG

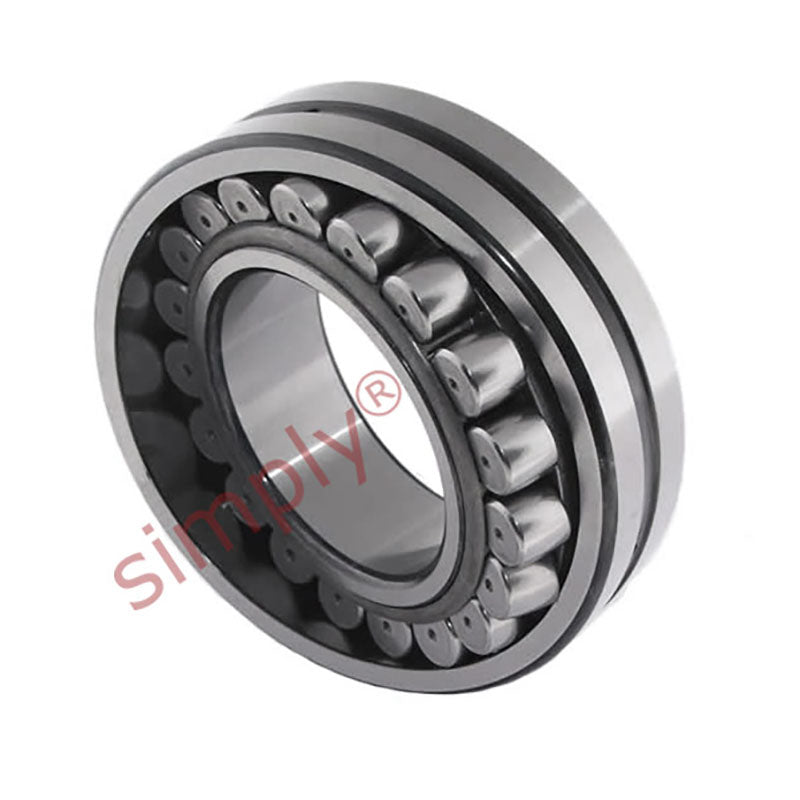

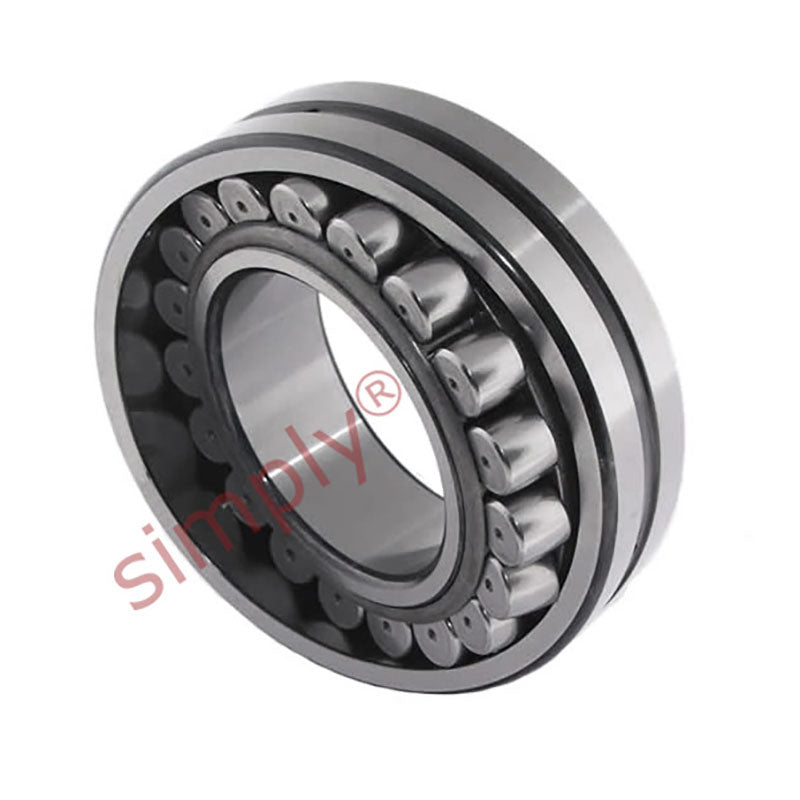

FAG 23218E1KTVPB X-life Spherical Roller Bearing with Taper Bore with Glass Fibre Reinforced Polyamide Cage 90x160x52.4mm

Name: FAG 23218E1KTVPB X-life Spherical Roller Bearing with Taper Bore with Glass Fibre Reinforced Polyamide Cage 90x160x52.4mm
Brand: FAG
SKU: 23218-E1-K-TVPB-FAG
Price: 297.00 CHF
Availability: InStock

CHF 297.00 ex VAT

Sale Sold out

Equivalent to: 23218K

In stock

Price Break

3+ CHF 237.66

4+ CHF 224.31

9+ CHF 221.63

19+ CHF 218.96

29+ CHF 216.29

39+ CHF 213.62

49+ CHF 200.27

59+ CHF 197.60

249+ CHF 194.93

499+ CHF 192.26

999+ CHF 186.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options

Brand / Quality:: FAG - High Quality
Inside Diameter:: 90mm
Outside Diameter:: 160mm
Width:: 52.4mm
Seals / Shields:: None
Clearance:: * Standard

Technical

---	Dimensions
d	90mm
D	160mm
B	52.4mm
r min.	2mm
D1	140mm
d2	104.1mm
ds	3.2mm
ns	6.5mm
da min.	101mm
Da max.	149mm
ra max.	2mm
---	Loads, Speeds and Weights
Fatigue limit load	48500 N
Limiting speed	4300 rpm
Reference speed	2650 rpm
Dynamic Load Rating	445000 N
Static Load Rating	520000 N
Weight	4.08kg
---	Factors
e	0.31
Y1	2.2
Y2	3.27
Y0	2.15
---	Matching Adaptor Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H2318+sleeve>H2318</a>
---	Matching Withdrawal Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX3218+sleeve>AHX3218</a>
