SKU: 23122-E1A-K-M-C3u-FAG

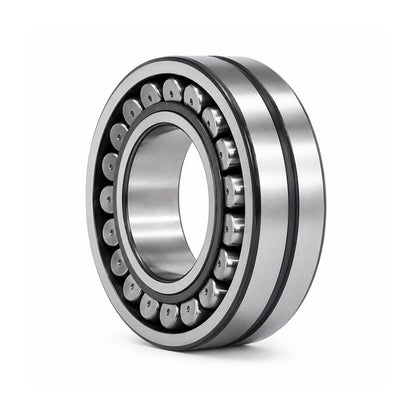

FAG 23122E1AKMC3 X-life Spherical Roller Bearing with AHX3122 Withdrawal Sleeve 105x180x56mm

Name: FAG 23122E1AKMC3 X-life Spherical Roller Bearing with AHX3122 Withdrawal Sleeve 105x180x56mm
Brand: FAG
SKU: 23122-E1A-K-M-C3u-FAG
Price: 565.00 CHF
Availability: InStock

CHF 565.00 ex VAT

Sale Sold out

In stock

Price Break

3+ CHF 451.56

4+ CHF 426.19

9+ CHF 421.12

19+ CHF 416.04

29+ CHF 410.97

39+ CHF 405.90

49+ CHF 380.53

59+ CHF 375.45

249+ CHF 370.38

499+ CHF 365.31

999+ CHF 355.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SPHERWITHD_DESC

Brand / Quality:: FAG - High Quality
Inside Diameter:: 105mm
Outside Diameter:: 180mm
Width:: 56mm
Seals / Shields:: None
Clearance:: * Standard

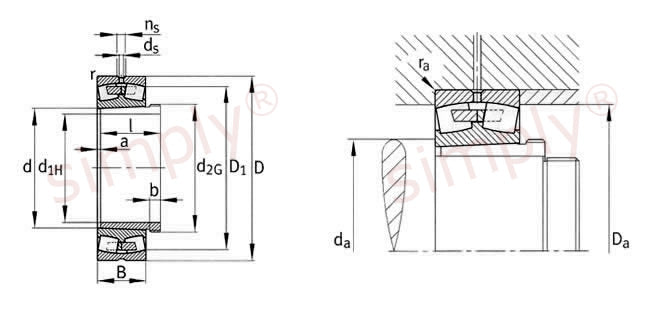

Technical

d1H	105mm
d	110mm
D	180mm
B	56mm
r min	2mm
D1	160mm
ds	4.8mm
ns	9.5mm
a	4mm
b	11mm
Thread d2G	M120X2
l	68mm
da min	121mm
Da max	169mm
ra max	2mm
Dynamic load Cr	530000 N
Static load C0r	680000 N
e	0.28
Y1	2.41
Y2	3.59
Y0	2.35
Fatigue load limit Cur	61000 N
Limiting speed nG	4000 rpm
Reference speed nB	2550 rpm
Bearing weight	5.1 kg
Withdrawal sleeve weight	0.774 kg
