SKU: 23120-E1A-M-FAG
FAG 23120E1AM X-life Spherical Roller Bearing with Cylindrical Bore 100x165x52mm
FAG 23120E1AM X-life Spherical Roller Bearing with Cylindrical Bore 100x165x52mm
Regular price
CHF 392.00
ex VAT
Regular price
Sale price
CHF 392.00
ex VAT
In stock
Price Break
3+
CHF 313.20
4+
CHF 295.60
9+
CHF 292.09
19+
CHF 288.57
29+
CHF 285.05
39+
CHF 281.53
49+
CHF 263.93
59+
CHF 260.41
249+
CHF 256.89
499+
CHF 253.38
999+
CHF 246.34
Quantity
Couldn't load pickup availability
Description
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 165mm
- Width:
- 52mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

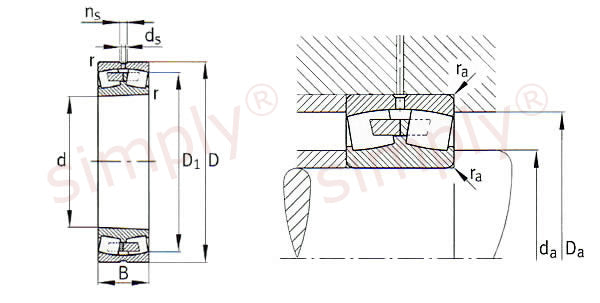

| --- | Dimensions |
|---|---|
| d | 100mm |
| D | 165mm |
| B | 52mm |
| r min. | 2mm |
| D1 | 146.3mm |
| ds | 3.2mm |
| ns | 6.5mm |
| da min. | 111mm |
| Da max. | 154mm |
| ra max. | 2mm |
| --- | Loads, Speeds and Weights |
| Fatigue limit load | 52000 N |
| Limiting speed | 4300 rpm |
| Reference speed | 2750 rpm |
| Dynamic Load Rating | 450000 N |
| Static Load Rating | 570000 N |
| Weight | 4.37kg |
| --- | Factors |
| e | 0.28 |
| Y1 | 2.37 |
| Y2 | 3.53 |
| Y0 | 2.32 |
