SKU: 22326-E1-K-FAG
FAG 22326E1K X-life Spherical Roller Bearing with Taper Bore 130x280x93mm
FAG 22326E1K X-life Spherical Roller Bearing with Taper Bore 130x280x93mm
Regular price
CHF 1,068.00
ex VAT
Regular price
Sale price
CHF 1,068.00
ex VAT
Equivalent to: 22326K
In stock
Price Break
3+
CHF 854.02
4+
CHF 806.04
9+
CHF 796.44
19+
CHF 786.85
29+
CHF 777.25
39+
CHF 767.66
49+
CHF 719.68
59+
CHF 710.08
249+
CHF 700.49
499+
CHF 690.89
999+
CHF 671.70
Quantity
Couldn't load pickup availability
Description
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 130mm
- Outside Diameter:
- 280mm
- Width:
- 93mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

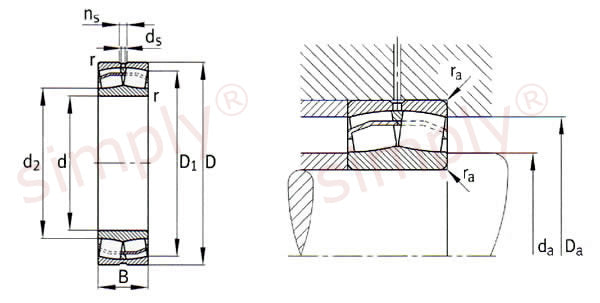

| --- | Dimensions |
|---|---|
| d | 130mm |
| D | 280mm |
| B | 93mm |
| r min. | 4mm |
| D1 | 239.5mm |
| d2 | 162.2mm |
| ds | 9.5mm |
| ns | 17.7mm |
| da min. | 147mm |
| Da max. | 263mm |
| ra max. | 3mm |
| --- | Loads, Speeds and Weights |
| Fatigue limit load | 117000 N |
| Limiting speed | 2400 rpm |
| Reference speed | 1820 rpm |
| Dynamic Load Rating | 1250000 N |
| Static Load Rating | 1370000 N |
| Weight | 27.4kg |
| --- | Factors |
| e | 0.33 |
| Y1 | 2.06 |
| Y2 | 3.06 |
| Y0 | 2.01 |
| --- | Matching Adaptor Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H2326+sleeve>H2326</a> |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA2326+sleeve>HA2326</a> |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE2326+sleeve>HE2326</a> |
| --- | Matching Withdrawal Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX2326G+sleeve>AHX2326G</a> |
