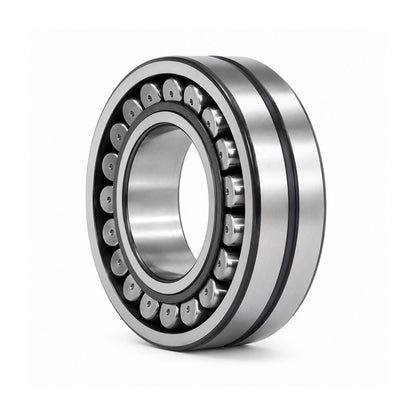

FAG 22320E1K X-life Spherical Roller Bearing with AHX2320 Withdrawal Sleeve 95x215x73mm
FAG 22320E1K X-life Spherical Roller Bearing with AHX2320 Withdrawal Sleeve 95x215x73mm
Regular price
CHF 597.00
ex VAT
Regular price
Sale price
CHF 597.00
ex VAT
In stock
Price Break
3+
CHF 477.52
4+
CHF 450.69
9+
CHF 445.33
19+
CHF 439.96
29+
CHF 434.60
39+
CHF 429.23
49+
CHF 402.41
59+
CHF 397.04
249+
CHF 391.67
499+
CHF 386.31
999+
CHF 375.58
Quantity
Couldn't load pickup availability
Description
Description
SPHERWITHD_DESC
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 215mm
- Width:
- 73mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1H | 95mm |
|---|---|
| d | 100mm |
| D | 215mm |
| B | 73mm |
| r min | 3mm |
| D1 | 184.7mm |
| d2 | 130.2mm |
| ds | 6.3mm |
| ns | 12.2mm |
| a | 4mm |
| b | 16mm |
| Thread d2G | M110X2 |
| l | 90mm |
| da min | 114mm |
| Da max | 201mm |
| ra max | 2.5mm |
| Dynamic load Cr | 810000 N |
| Static load C0r | 920000 N |
| e | 0.33 |
| Y1 | 2.03 |
| Y2 | 3.02 |
| Y0 | 1.98 |
| Fatigue load limit Cur | 75000 N |
| Limiting speed nG | 3000 rpm |
| Reference speed nB | 2380 rpm |
| Bearing weight | 13.1 kg |
| Withdrawal sleeve weight | 1.01 kg |
