SKU: 22220-E1-K-C3u-FAG

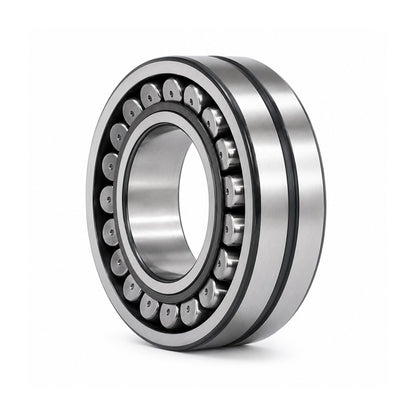

FAG 22220E1KC3 X-life Spherical Roller Bearing with AHX320 Withdrawal Sleeve 95x180x46mm
FAG 22220E1KC3 X-life Spherical Roller Bearing with AHX320 Withdrawal Sleeve 95x180x46mm
Regular price
CHF 331.00
ex VAT
Regular price
Sale price
CHF 331.00
ex VAT
In stock
Price Break
3+
CHF 264.50
4+
CHF 249.64
9+
CHF 246.67
19+
CHF 243.70
29+
CHF 240.72
39+
CHF 237.75
49+
CHF 222.89
59+
CHF 219.92
249+
CHF 216.95
499+
CHF 213.98
999+
CHF 208.03
Quantity
Couldn't load pickup availability
Description
Description
SPHERWITHD_DESC
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 180mm
- Width:
- 46mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1H | 95mm |
|---|---|
| d | 100mm |
| D | 180mm |
| B | 46mm |
| r min | 2.1mm |
| D1 | 161.4mm |
| d2 | 119mm |
| ds | 4.8mm |
| ns | 9.5mm |
| a | 4mm |
| b | 10mm |
| Thread d2G | M110X2 |
| l | 59mm |
| da min | 112mm |
| Da max | 168mm |
| ra max | 2.1mm |
| Dynamic load Cr | 430000 N |
| Static load C0r | 475000 N |
| e | 0.24 |
| Y1 | 2.84 |
| Y2 | 4.23 |
| Y0 | 2.78 |
| Fatigue load limit Cur | 52000 N |
| Limiting speed nG | 4300 rpm |
| Reference speed nB | 3150 rpm |
| Bearing weight | 4.91 kg |
| Withdrawal sleeve weight | 0.595 kg |
