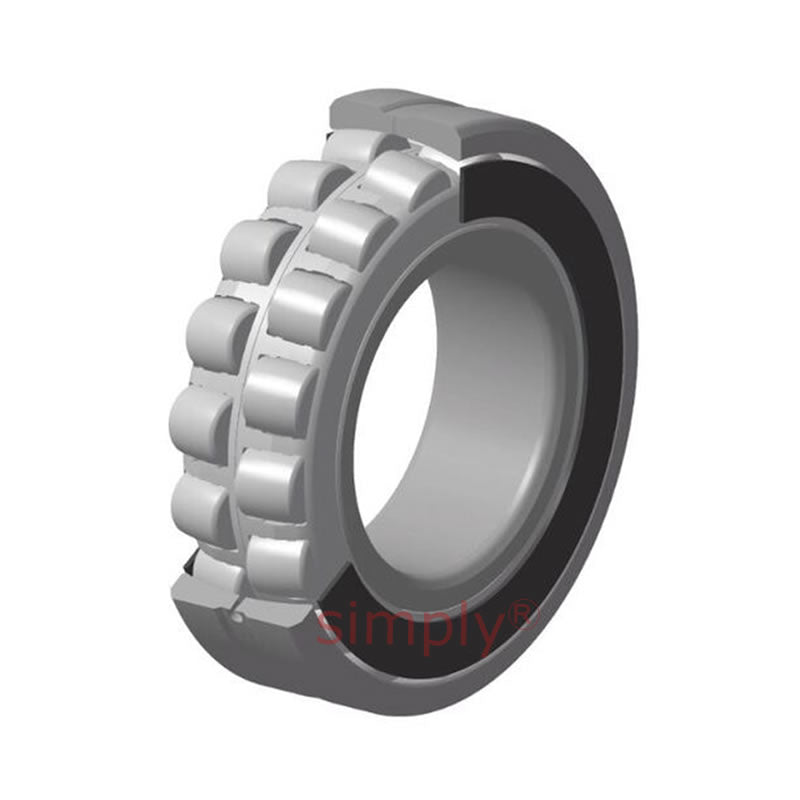

• SNR 22217EAKW33ZZC3 Metal Shielded Spherical Roller Bearing with Tapered Bore 85x150x36mm Allow 1 - 2 Days
1 1

SKU: 22217EAKW33ZZC3-SNR

SNR 22217EAKW33ZZC3 Metal Shielded Spherical Roller Bearing with Tapered Bore 85x150x36mm Allow 1 - 2 Days

SNR 22217EAKW33ZZC3 Metal Shielded Spherical Roller Bearing with Tapered Bore 85x150x36mm Allow 1 - 2 Days
CHF 244.00 ex VAT
CHF 244.00 ex VAT
Sale Sold out

Equivalent to: 22217KZZC3

In stock

Price Break
3+ CHF 195.25
5+ CHF 184.28
9+ CHF 182.08
19+ CHF 179.89
49+ CHF 177.70
74+ CHF 175.50
99+ CHF 164.53
199+ CHF 162.34
249+ CHF 160.15
499+ CHF 157.95
999+ CHF 153.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
VC58RI90ZT
Brand / Quality:
SNR - NTN - Premium Quality
Inside Diameter:
85mm
Outside Diameter:
150mm
Width:
36mm
Seals / Shields:
Metal Shielded
Clearance:
C3
Item Type:
Metal Shielded Spherical Roller Bearing
Technical
--- Bearing dimensions
d 85mm
D 150mm
B 36mm
rs 2mm
D1 136.5mm
d2 100.7mm
b 7.9mm
k 3.5mm
--- Abutment dimensions
da min 96mm
Da Max 139mm
ra max 2mm
Dynamic load Cr 324kN
Static load Cor 330kN
Fatigue load Cu 38.7kn
--- Calculation factors
e 0.22
Y1 3.07
Y2 4.58
YO 3.01
--- Speeds and other information
Reference speed 4100rpm
Limiting speed 5400rpm
Internal clearance min 110μm
Internal clearance max 140μm
Initial grease addition mm<sup>3</sup> 28934
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 2.63kg
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H317+sleeve>H317</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA317+sleeve>HA317</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE317+sleeve>HE317</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX317+sleeve>AHX317</a>
