SKU: 22213EK/C3-SKF

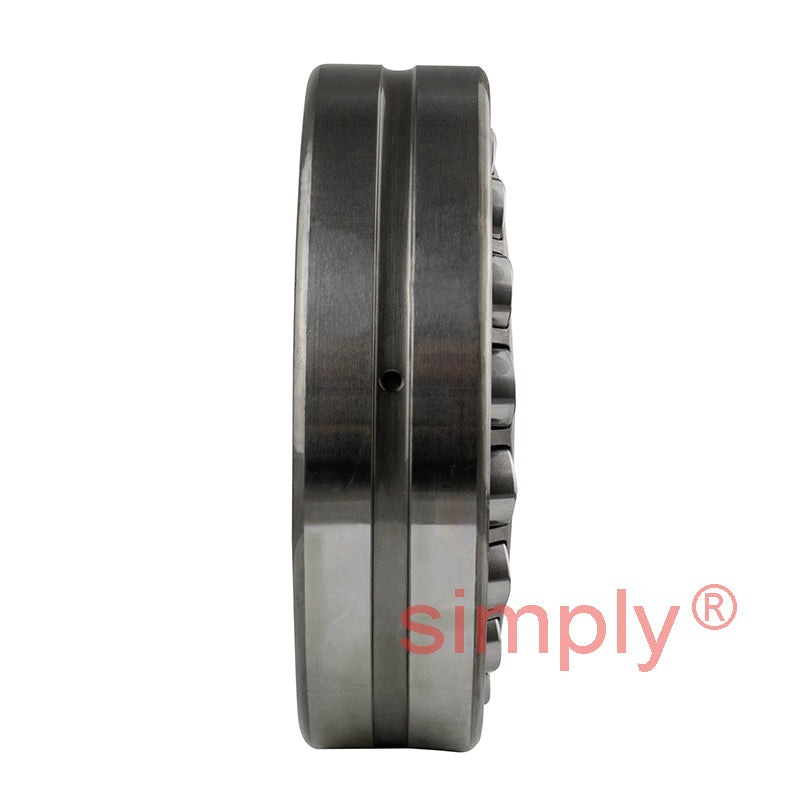

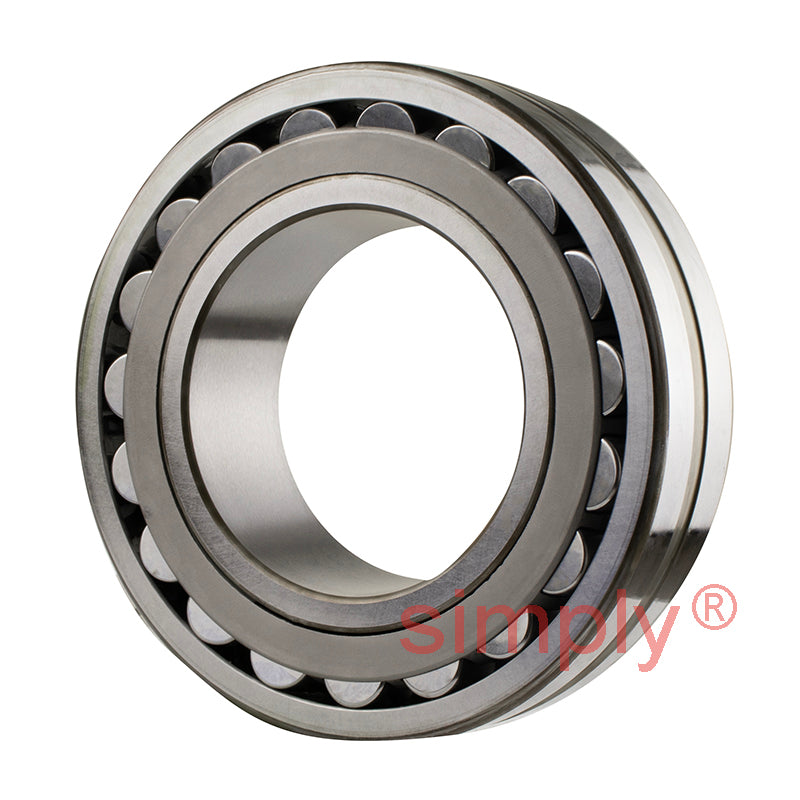

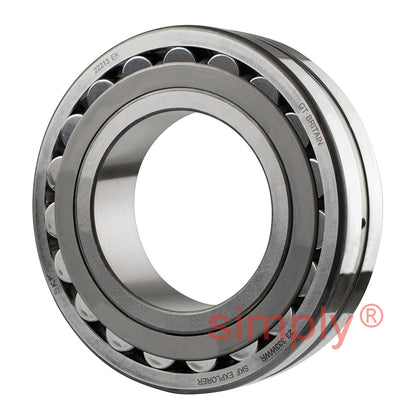

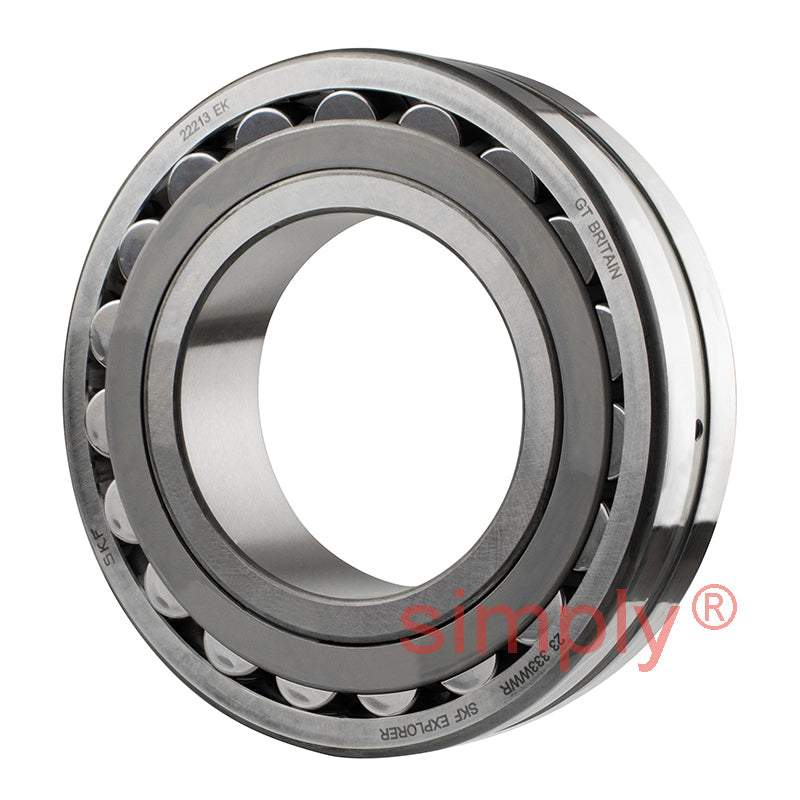

SKF 22213EKC3 Spherical Roller Bearing with Taper Bore 65x120x31mm

SKF 22213EKC3 Spherical Roller Bearing with Taper Bore 65x120x31mm
CHF 130.00 ex VAT
CHF 130.00 ex VAT
Sale Sold out

Equivalent to: 22213KC3

In stock

Price Break
3+ CHF 103.63
4+ CHF 97.81
9+ CHF 96.64
19+ CHF 95.48
29+ CHF 94.31
39+ CHF 93.15
49+ CHF 87.33
59+ CHF 86.16
249+ CHF 85.00
499+ CHF 83.83
999+ CHF 81.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options
Brand / Quality:
SKF - High Quality
Inside Diameter:
65mm
Outside Diameter:
120mm
Width:
31mm
Clearance:
C3
Technical
--- Dimensions
d 65mm
D 120mm
B 31mm
D1 106mm
d2 77.6mm
r1r2 min 1.5mm
b 5.5mm
K 3mm
da min 74mm
Da max 111mm
ra max 1.5mm
--- Speeds, Loads and Weights
Dynamic load C 193 kN
Static load Co 216 kN
Fatigue load limit Pu 24 kN
Reference speed 5000 rpm
Limiting speed 7000 rpm
Weight 1.55 kg
--- Factors
Calculation factor e 0.24
Calculation factor Y1 2.8
Calculation factor Y2 4.2
Calculation factor Y0 2.8
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H313+sleeve>H313</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA313+sleeve>HA313</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE313+sleeve>HE313</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS313+sleeve>HS313</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AH313G+sleeve>AH313G</a>
