SKU: 22206-E1-K+H306-FAG
FAG 22206E1K X-life Spherical Roller Bearing with H306 Adapter Sleeve 25x62x20mm
FAG 22206E1K X-life Spherical Roller Bearing with H306 Adapter Sleeve 25x62x20mm
Regular price
CHF 64.00
ex VAT
Regular price
Sale price
CHF 64.00
ex VAT
In stock
Price Break
3+
CHF 54.50
4+
CHF 53.36
9+
CHF 52.23
19+
CHF 51.09
29+
CHF 49.96
39+
CHF 48.82
49+
CHF 47.69
59+
CHF 46.55
249+
CHF 45.41
499+
CHF 44.28
999+
CHF 43.14
Quantity
Couldn't load pickup availability
Description
Description
|
Spherical Roller Bearing with Adapter Sleeve: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. This bearing is supplied with an adapter sleeve. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 20mm
- Seals / Shields:
- None
- Clearance:
- * Standard

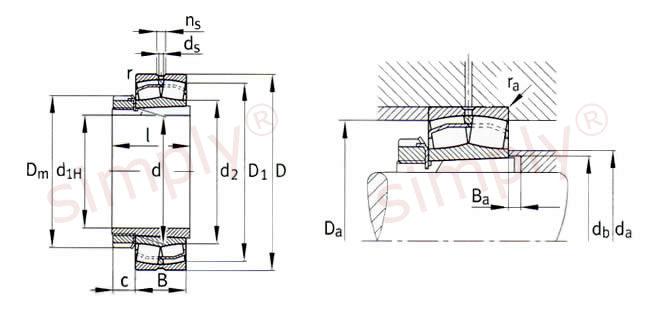

Technical
Technical
| d1H | 25mm |
|---|---|
| d | 30mm |
| D | 62mm |
| B | 20mm |
| r min | 1mm |
| D1 | 53.7mm |
| d2 | 37.9mm |
| ds | 3.2mm |
| ns | 4.8mm |
| Dm | 45mm |
| l | 31mm |
| c | 9mm |
| da max | 37mm |
| Da max | 54.6mm |
| db min | 33mm |
| Ba min | 5mm |
| ra max | 1mm |
| Dynamic load Cr | 64000 N |
| Static load C0r | 57000 N |
| e | 0.31 |
| Y1 | 2.15 |
| Y2 | 3.2 |
| Y0 | 2.1 |
| Fatigue load limit Cur | 6900 N |
| Limiting speed nG | 13000 rpm |
| Reference speed nB | 7800 rpm |
| Bearing weight | 0.56 kg |
| Adapter sleeve weight | 0.099 kg |
