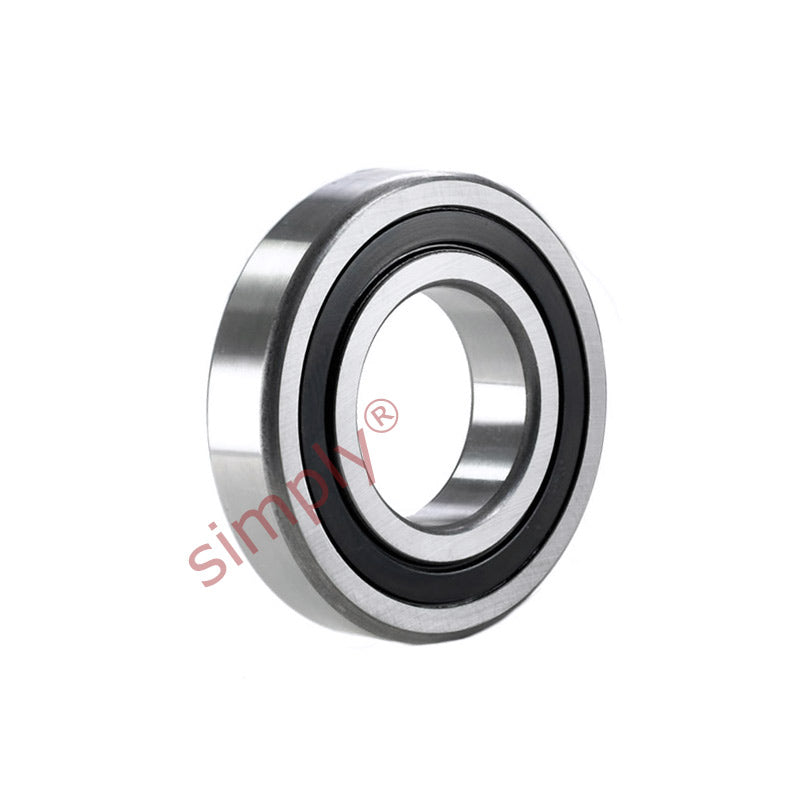

• 2210K2RS Rubber Sealed Self Aligning Ball Bearing with Taper Bore 50x90x23mm
1 1

SKU: 2210.K.2RS.MB

2210K2RS Rubber Sealed Self Aligning Ball Bearing with Taper Bore 50x90x23mm

2210K2RS Rubber Sealed Self Aligning Ball Bearing with Taper Bore 50x90x23mm
CHF 63.00 ex VAT
CHF 63.00 ex VAT
Sale Sold out

Equivalent to: 2210EK2RS 2210K-2RS

In stock

Price Break
10+ CHF 49.65
19+ CHF 46.86
29+ CHF 46.30
39+ CHF 45.74
49+ CHF 45.19
74+ CHF 44.63
99+ CHF 41.84
199+ CHF 41.28
249+ CHF 40.72
499+ CHF 40.16
999+ CHF 39.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Rubber Sealed Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. Supplied with two rubber seals this provided protection from the surrounding environment but limits the amount of self alignment
Benefits: Tolerates misalignment, cool running, self centering
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
50mm
Outside Diameter:
90mm
Width:
23mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
--- Dimensions
d 50mm
D 90mm
B 23mm
r1r2 min 1.1mm
--- Speeds, Loads and Weights
Dynamic Load 26.3kN
Static Load 9.5kN
Pu 0.4Kn
Limiting Speed 9500rpm
Weight 0.59kg
--- Factors
e 0.2
Fa/Fr = e 3.2
Fa/Fr > e 4.9
Y0 3.3
--- Matching Adaptor Sleeves
Adaptor Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H310C+sleeve>H310C</a>
Adaptor Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H310E+sleeve>H310E</a>
