SKU: 21311-E1-Ku-FAG

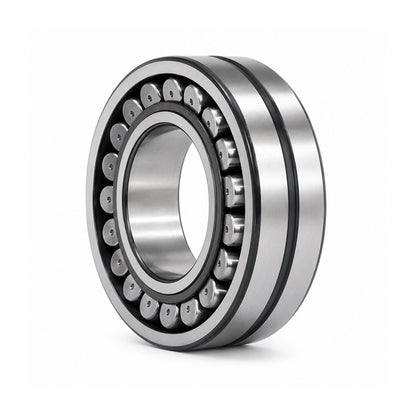

FAG 21311E1K X-life Spherical Roller Bearing with AHX311 Withdrawal Sleeve 50x120x29mm

Name: FAG 21311E1K X-life Spherical Roller Bearing with AHX311 Withdrawal Sleeve 50x120x29mm
Brand: FAG
SKU: 21311-E1-Ku-FAG
Price: 163.00 CHF
Availability: InStock

CHF 163.00 ex VAT

Sale Sold out

In stock

Price Break

3+ CHF 130.45

4+ CHF 123.12

9+ CHF 121.65

19+ CHF 120.19

29+ CHF 118.72

39+ CHF 117.26

49+ CHF 109.93

59+ CHF 108.46

249+ CHF 107.00

499+ CHF 105.53

999+ CHF 102.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SPHERWITHD_DESC

Brand / Quality:: FAG - High Quality
Inside Diameter:: 50mm
Outside Diameter:: 120mm
Width:: 29mm
Seals / Shields:: None
Clearance:: * Standard

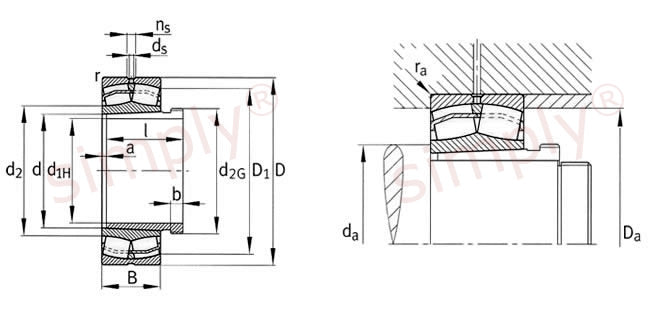

Technical

d1H	50mm
d	55mm
D	120mm
B	29mm
r min	2mm
D1	98.3mm
d2	71.4mm
ds	3.2mm
ns	6.5mm
a	3mm
b	7mm
Thread d2G	M60X2
l	37mm
da min	66mm
Da max	109mm
ra max	2mm
Dynamic load Cr	160000 N
Static load C0r	155000 N
e	0.24
Y1	2.84
Y2	4.23
Y0	2.78
Fatigue load limit Cur	20200 N
Limiting speed nG	6300 rpm
Reference speed nB	5100 rpm
Bearing weight	1.19 kg
Withdrawal sleeve weight	0.164 kg
