SKU: 21310-E1-K-C3+H310-FAG

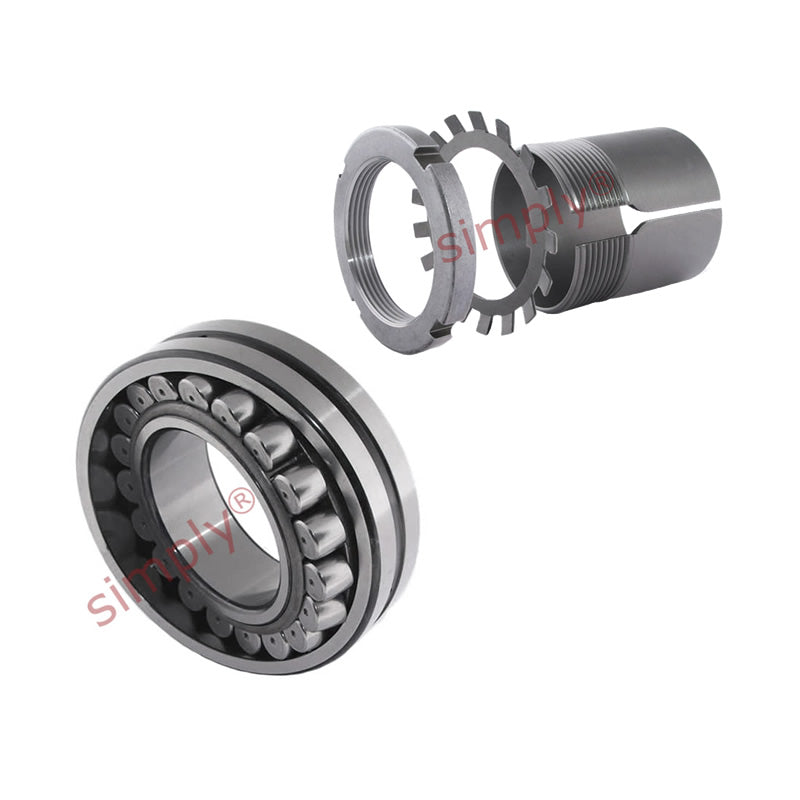

FAG 21310E1KC3 X-life Spherical Roller Bearing with H310 Adapter Sleeve 45x110x27mm
FAG 21310E1KC3 X-life Spherical Roller Bearing with H310 Adapter Sleeve 45x110x27mm
Regular price
CHF 114.00
ex VAT
Regular price
Sale price
CHF 114.00
ex VAT
In stock
Price Break
3+
CHF 98.31
4+
CHF 96.26
9+
CHF 94.21
19+
CHF 92.17
29+
CHF 90.12
39+
CHF 88.07
49+
CHF 86.02
59+
CHF 83.97
249+
CHF 81.92
499+
CHF 79.88
999+
CHF 77.83
Quantity
Couldn't load pickup availability
Description
Description
|
Spherical Roller Bearing with Adapter Sleeve: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. This bearing is supplied with an adapter sleeve. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d1H | 45mm |
|---|---|
| d | 50mm |
| D | 110mm |
| B | 27mm |
| r min | 2mm |
| D1 | 89.8mm |
| d2 | 67.3mm |
| ds | 3.2mm |
| ns | 4.8mm |
| Dm | 70mm |
| l | 42mm |
| c | 13mm |
| da max | 67mm |
| Da max | 99mm |
| db min | 55mm |
| Ba min | 5mm |
| ra max | 2mm |
| Dynamic load Cr | 129000 N |
| Static load C0r | 130000 N |
| e | 0.23 |
| Y1 | 2.92 |
| Y2 | 4.35 |
| Y0 | 2.86 |
| Fatigue load limit Cur | 17300 N |
| Limiting speed nG | 8500 rpm |
| Reference speed nB | 5400 rpm |
| Bearing weight | 1.28 kg |
| Adapter sleeve weight | 0.301 kg |
