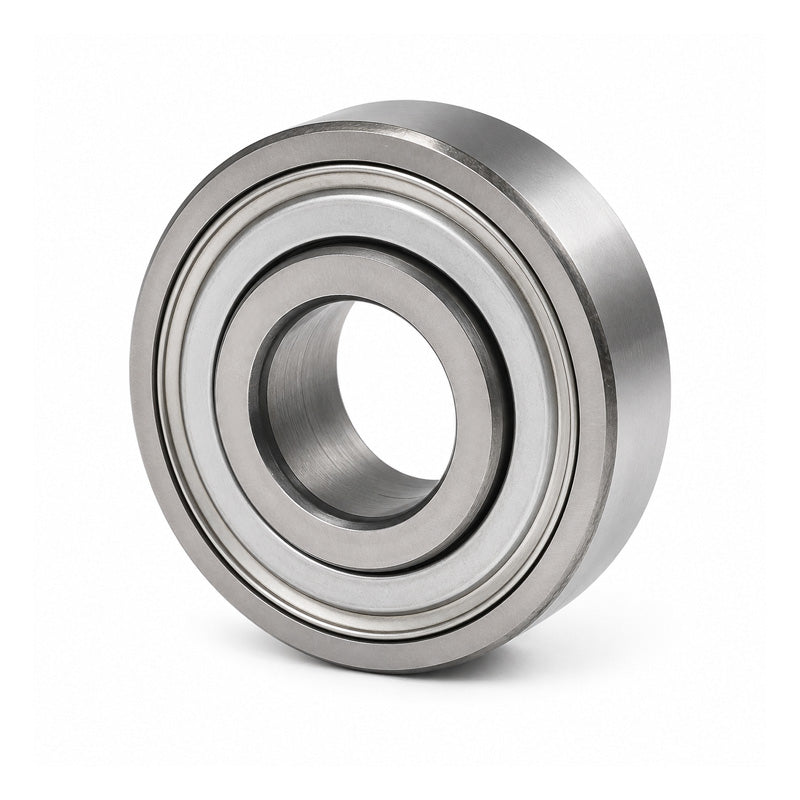

INA 212KRR Metric Parallel Outer Deep Groove Ball Bearing with R Seals 60x110x36mm
INA 212KRR Metric Parallel Outer Deep Groove Ball Bearing with R Seals 60x110x36mm
Out of stock
Description
Description
|
INA 2..-KRR Series Inserts: Bearing insert with parallel outer race and R seals. The inner ring is extended on both sides and is located on the shaft using a location fit. Due to the extended inner ring, additional axial spacer rings are not required. The concentric seat allows speeds equivalent to those of standard ball bearings, while the load can be either constant or alternating. The sheet steel washers extended outwards and angled downwards form a large grease reservoir. Operating temperature range: -20 deg C to +120 deg C. Benefits: Smooth running. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 36mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| B | 36mm |
| C | 22mm |
| C2 | 30mm |
| D1 | 94.7mm |
| d1 | 76.5mm |
| r min | 1.5mm |
| Limiting speed nG Fett | 3700 rpm |
| Dynamic load Cr | 52000 N |
| Static load C0r | 36000 N |
| Weight | 1.1 kg |
