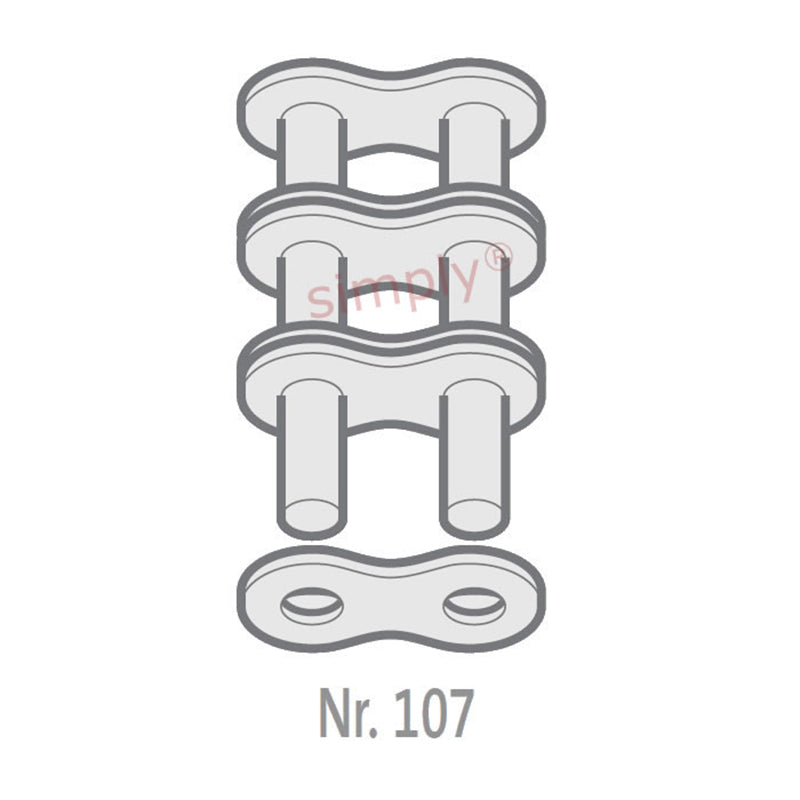

• Renold Blue Box 20B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 1-1/4 inch Pitch
1 1

SKU: 20B-3-BB-NO107-RENOLD

Renold Blue Box 20B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 1-1/4 inch Pitch

Renold Blue Box 20B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 1-1/4 inch Pitch
CHF 62.00 ex VAT
CHF 62.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 49.10
5+ CHF 46.35
10+ CHF 45.79
29+ CHF 45.24
49+ CHF 44.69
75+ CHF 44.14
100+ CHF 41.38
200+ CHF 40.83
250+ CHF 40.28
500+ CHF 39.73
1000+ CHF 38.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BS_NO107T_DESC
Brand / Quality:
Renold - High Quality
Pitch:
31.75mm = 1.25 (1-1/4) inch
Technical
Pitch (A) 1.25 inch
Pitch (A) 31.75mm
Inside Width min (B) 19.56mm
Roller Diameter max (C) 19.05mm
Plate Height max (D) 26.42mm
Plate Width Inner max (E) 4.62mm
Plate Width Outer max (F) 3.61mm
Pin Diameter max (G) 10.19mm
Pin Length max (H2) 113.2mm
Connecting Link Extension max (J) 2.7mm
Transverse Pitch nom (K) 36.45mm
ISO606 Tensile Strength min 250000 N
Weight 0.08kg/m
