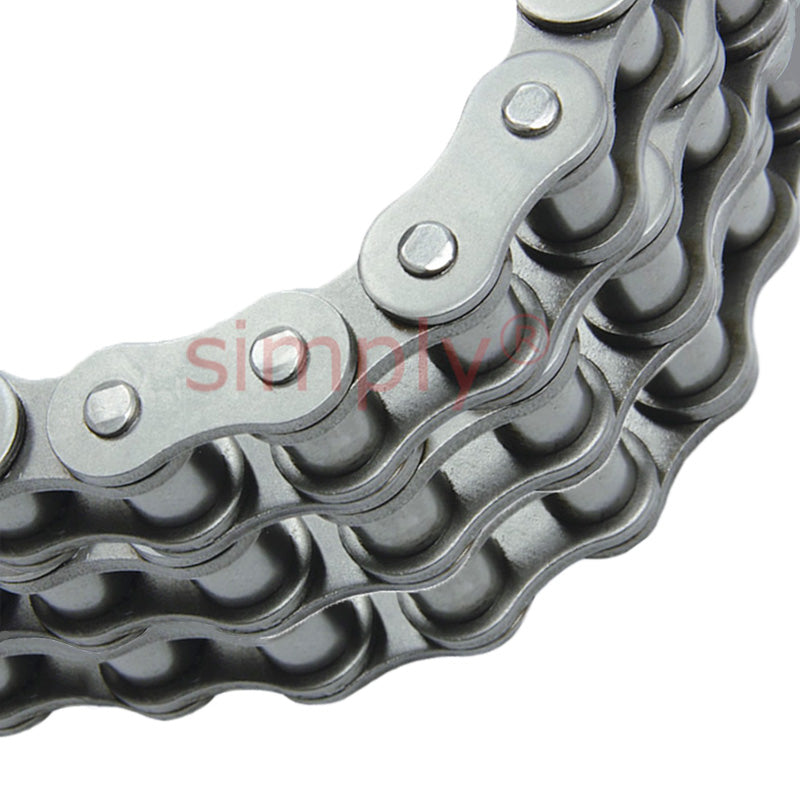

• Branded 20B-3 BS Triplex Roller Chain 1-1/4 inch Pitch 2.5 Metres
1 1

SKU: 20B-3-2.5MTR-MB

Branded 20B-3 BS Triplex Roller Chain 1-1/4 inch Pitch 2.5 Metres

Branded 20B-3 BS Triplex Roller Chain 1-1/4 inch Pitch 2.5 Metres
CHF 213.00 ex VAT
CHF 213.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 169.99
5+ CHF 160.44
10+ CHF 158.53
29+ CHF 156.62
49+ CHF 154.71
75+ CHF 152.80
100+ CHF 143.25
200+ CHF 141.34
250+ CHF 139.43
500+ CHF 137.52
1000+ CHF 133.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Major Branded Roller Chain: Manufactured to BS228, ISO 606, DIN8187, DIN8188 standards with hardened pins which prevent wear and stretch and also make it easy to dismantle. Roller chains are designed for demanding industrial and agricultural drives. Consistent quality, high-quality product.

Comprehensive range of simplex, duplex and triplex roller chains in British standard and American standard. Heavy-duty American standard roller chains are also available for extra tough conditions.

Brand / Quality:
Major Brand - High Quality
Pitch:
31.75mm = 1.25 (1-1/4) inch
Technical
Pitch (P) 31.75mm = 1.25 (1-1/4) inch
Roller Diameter (D1 max) 19.05mm
Width between inner plates (B1 min) 19.56mm
Pin dia meter (D2 max) 10.19mm
Pin length (L max) 114.2mm
Pin length (Lc max) 117.9mm
Inner plate depth (H2 max) 26.4mm
Plate thickness (T max) 4.5/3.5mm
Ultimate tensile strength (Q min) kN/LB 250.0/56818
Average tensile strength (Q0) kN 290
Transverse pitch (Pt) mm 36.45
Weight per meter (q) kg/m 10.82
