SKU: 20222-MB-C3-MB

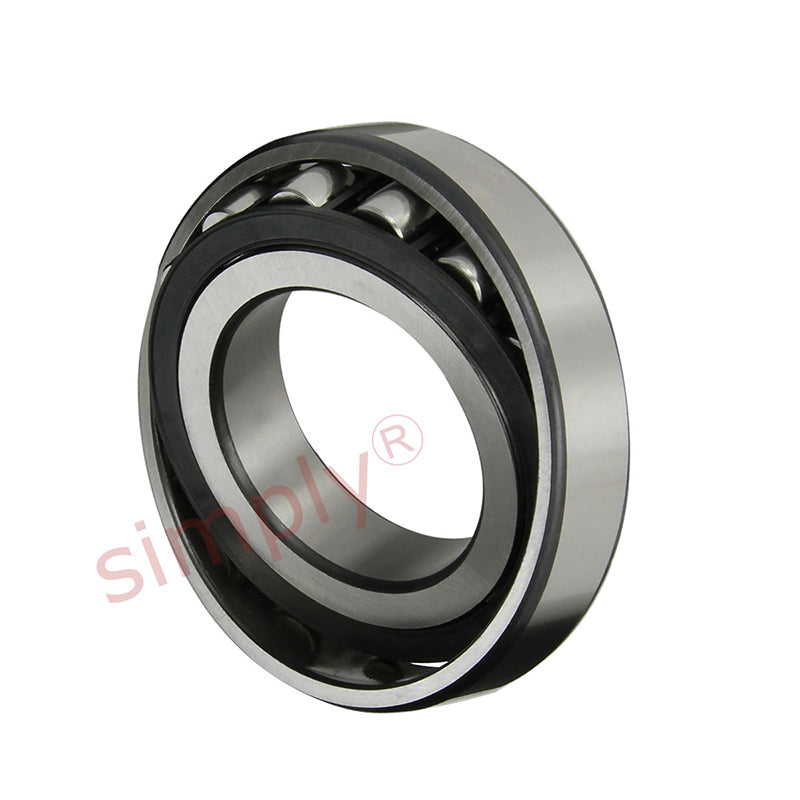

20222MBC3 Barrel Roller Bearing with Cylindrical Bore 110x200x38mm - Allow 2-3 Days
20222MBC3 Barrel Roller Bearing with Cylindrical Bore 110x200x38mm - Allow 2-3 Days
Regular price
CHF 699.00
ex VAT
Regular price
Sale price
CHF 699.00
ex VAT
In stock
Price Break
3+
CHF 559.46
4+
CHF 528.03
9+
CHF 521.74
19+
CHF 515.46
29+
CHF 509.17
39+
CHF 502.88
49+
CHF 471.45
59+
CHF 465.17
249+
CHF 458.88
499+
CHF 452.59
999+
CHF 440.02
Quantity
Couldn't load pickup availability
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 200mm
- Width:
- 38mm
- Clearance:
- C3
Technical
Technical
| d | 110mm |
|---|---|
| D | 200mm |
| B | 38mm |
| r min | 2.1mm |
| D1 | 178.6mm |
| da min | 122mm |
| Da max | 188mm |
| ra max | 2.1mm |
| Dynamic Load Cr | 285000 N |
| Static Load C0r | 375000 N |
| Fatigue limit load Cur | 34500 N |
| Limiting speed nG | 1700 rpm |
| Weight | 5.53 kg |
