20210KTVPC3 Barrel Roller Bearing with Taper Bore and H210 Adaptor Sleeve 45x90x20mm - Allow 2-3 Days
20210KTVPC3 Barrel Roller Bearing with Taper Bore and H210 Adaptor Sleeve 45x90x20mm - Allow 2-3 Days
Regular price
CHF 178.00
ex VAT
Regular price
Sale price
CHF 178.00
ex VAT
In stock
Price Break
3+
CHF 141.84
4+
CHF 133.87
9+
CHF 132.27
19+
CHF 130.68
29+
CHF 129.09
39+
CHF 127.49
49+
CHF 119.53
59+
CHF 117.93
249+
CHF 116.34
499+
CHF 114.74
999+
CHF 111.56
Quantity
Couldn't load pickup availability
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a tapered bore and a solid window cage made from glass fibre reinforced polyamide. This bearing is also available with an adaptor sleeve for locating purposes. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 90mm
- Width:
- 20mm
- Clearance:
- C3
Technical
Technical

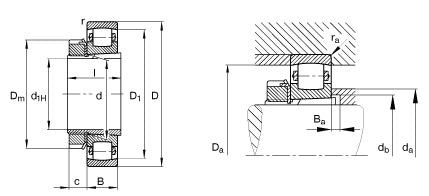

| d1H | 45mm |
|---|---|
| D | 90mm |
| B | 20mm |
| Ba min | 5mm |
| c | 13mm |
| D1 | 79.5mm |
| Da max | 83mm |
| Dm | 70mm |
| d | 50mm |
| da max | 61mm |
| db min | 53mm |
| l | 35mm |
| ra max | 1mm |
| r min | 1.1mm |
| Adaptor sleeve | H210 |
| Dynamic radial load Cr | 58500 N |
| Static radial load C0r | 68000 N |
| Limiting speed nG | 3600 rpm |
| Fatigue limit radial load Cur | 7000 N |
| Weight | 0.759 kg |
