SKU: 1ASS316-JUB

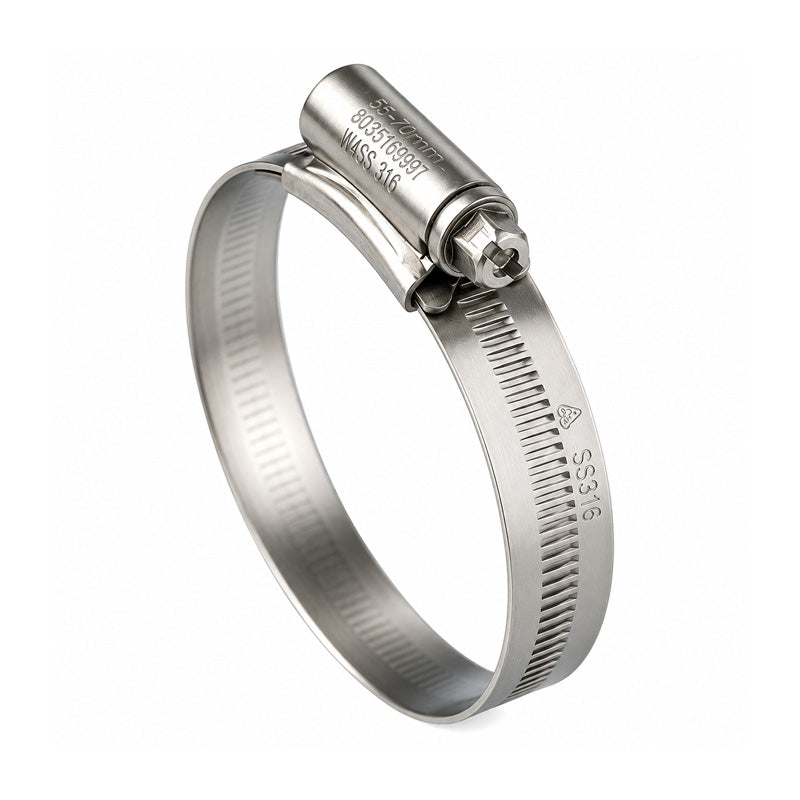

1ASS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 22mm-30mm Band Width 13mm

Name: 1ASS316 316 Stainless Steel HNSS Original Jubilee Clip Adjustment Range 22mm-30mm Band Width 13mm
Brand: Jubilee
SKU: 1ASS316-JUB
Price: 6.00 CHF
Availability: InStock

CHF 6.00 ex VAT

Sale Sold out

Low stock

Price Break

3+ CHF 4.74

5+ CHF 4.55

9+ CHF 4.45

19+ CHF 4.31

49+ CHF 4.22

74+ CHF 3.98

99+ CHF 3.35

199+ CHF 0.00

249+ CHF 0.00

499+ CHF 0.00

999+ CHF 0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

316 Stainless Steel HNSS Worm Drive Jubilee Clips: The original Jubilee^® Clips. Suitable for most day to day needs in the automotive, agricultural, irrigation and farm machinery.
Benefits: Rolled edges provide protection to softer hoses.

Brand / Quality:: Jubilee - High Quality
Width:: 13mm
Min Adjustment Range:: 22mm
Max Adjustment Range:: 30mm

Technical

BS No.	30
Adjustment Range	22mm - 30mm
Adjustment Range	7/8 - 1-1/8 inch
Band Width (+/- 0.1)	13mm
Band Thickness (+/- 0.1)	0.914mm
Recommended Torque	5.1Nm
Maximum Torque	6.8Nm
Maximum Pressure	203 Psi
