SKU: 16B-2-SD-NO26-RENOLD
Renold SD 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
Renold SD 16B-2-NO26 BS Duplex Chain Connecting Link With Spring Clip 1 inch Pitch
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
In stock
Price Break
2+
CHF 9.24
5+
CHF 8.72
10+
CHF 8.62
29+
CHF 8.51
49+
CHF 8.41
75+
CHF 8.31
100+
CHF 7.79
200+
CHF 7.68
250+
CHF 7.58
500+
CHF 7.48
1000+
CHF 7.27
Quantity
Couldn't load pickup availability
Description
Description

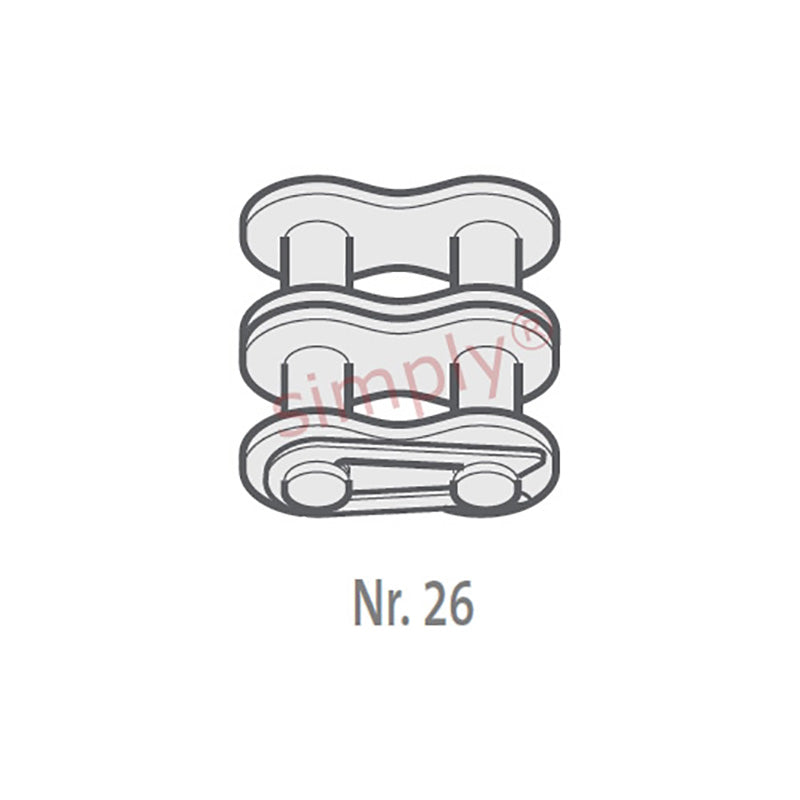

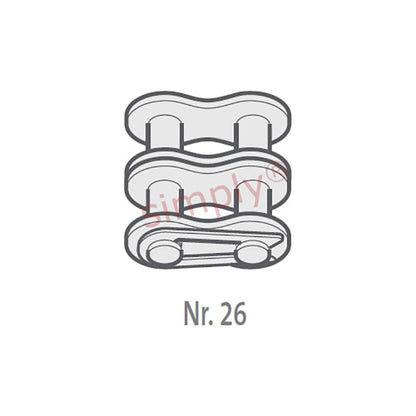

| Renold No. 26 European (BS) Duplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.2mm |
| Pin Length max (H2) | 67.5mm |
| Connecting Link Extension max (J) | 1.59999999999999mm |
| Transverse Pitch nom (K) | 31.88mm |
| ISO606 Tensile Strength min | 106000 N |
| Weight | 0.046kg/m |
